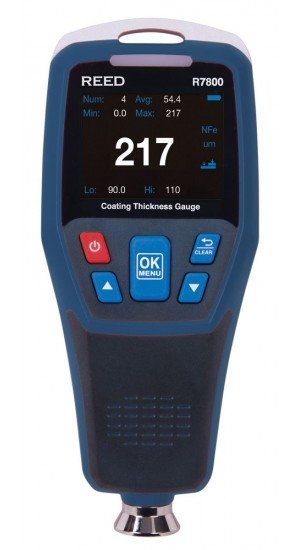

REED R7800 Coating Thickness Gauge

Name: REED R7800 Coating Thickness Gauge
Brand: REED Instruments
SKU: R7800
Availability: OutOfStock

Part Number : R7800

This coating thickness gauge is intended for non-invasive measurements of coating thickness. The R7800 comes with zero or two-point calibration, user-adjustable high/low alarms, and a USB port for analysing findings in the accompanying software.

Availability: Sold out

Free Kuwait shipping available

Specifications
Features
Downloads

Accuracy	0 to 12501/4m: +/-3% +11/4m 0 to 49.21mils: +/-3% +0.04mils
Dimensions	5.9 x 2.6 x 1.38" (152 x 65 x 35mm)
Display	4-digit color LCD display
Measuring range	0 to 12501/4m 0.1 to 49.2mils
Operating Humidity Range	¢°¤80%RH
Operating Temperature	32 to 104°F (0 to 40°C)
Power Supply	2 x AA Batteries
Resolution	320 x 240 pixels
Storage Temperature	-4 to 140°F (-20 to 60°C)
Weight	6.35oz (180g)

Automatically detects ferrous and non-ferrous substrates
Easy-to-read color LCD display
360° screen rotation allows users to view measured readings from any angle
Durable gauge and probe construction
Zero and two-point calibration ensures measurement accuracy
Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
Tri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)
Internal memory stores up to 500 groups of data
View stored data, charts or real-time measurement with software
Low battery indication and auto shut off
