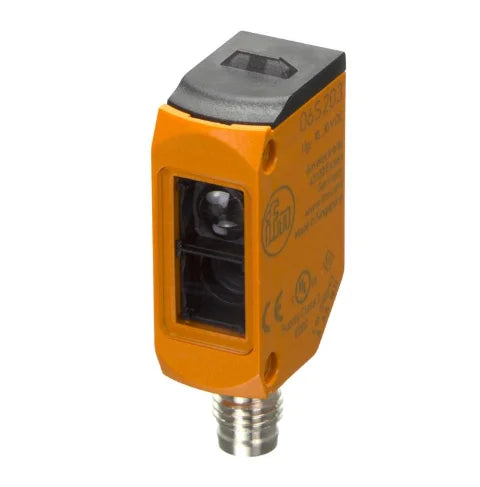

Through–beam sensor ifm electronic O6S203 - O6S-OOKG/AS/4P
The transmitter of the O6S203 - O6S-OOKG/AS/4P through-beam sensor from ifm electronic is characterised by a plastic housing with protection rating IP65/IP67 and a range of 10.0 m. Thanks to the transparent black housing the LEDs for operating and switching status indication are clearly visible even in bright light. The O6S203 through-beam sensor with a 4-pole M8 connection is the perfect solution for use in conveyor systems.
- Specifications
- Features
- Downloads
| Ambient temperature | -25 °C to 60 °C |
| Current consumption [mA] | 11; ((24 V)) |
| Housing | rectangular |
| Light Source | red light |
| Material Type | housing: ABS; PPSU; connector thread: brass coated; sealing: EPDM |
| Operating voltage [V] | 10-30 DC V |
| Protection class | III |
| Weight | 17.6g |
- Particularly compact housing for use where space is restricted
- Very long range independent of the object color
- Excellent price/performance ratio
- Clearly visible LED for indicating the readiness for operation
