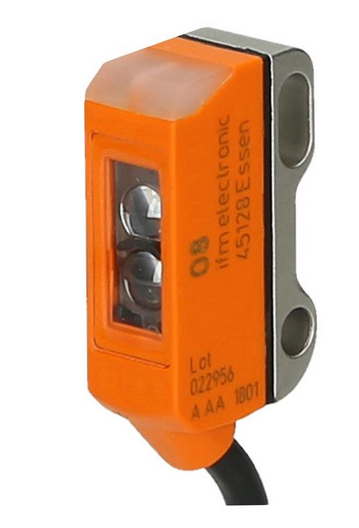

ifm O8E200 - O8E-DPKG/IO-Link/2,0M | Photoelectric Sensor | dark-on mode, 10-30 DC V
The ifm O8E200 - O8E-DPKG/IO-Link/2,0M is a photoelectric sensor with output function dark-on mode, electrical design PNP and operating voltage 10-30 DC V. ifm lists particularly small housing for use where space is restricted, for the reliable position detection in feeding and handling technology and precise detection of very small, very flat or highly reflective components among its features.
- Ambient temperature: 25 °C to 60 °C
- Current consumption: 15; ((24 V))
- Electrical design: PNP
- Housing: rectangular
- Operating voltage: 10-30 DC V
- Output function: dark-on mode
- Protection class: III
- Reverse polarity protection: yes
- Specifications
- Features
- Downloads
| Ambient Temperature | -25 °C to 60 °C (-13 to 140 °F) |
| Current Consumption [mA] | 15; ((24 V)) |
| Electrical Design | PNP |
| Housing | rectangular |
| Operating Voltage [V] | 10-30 DC V |
| Output Function | dark-on mode |
| Reverse Polarity Protection | yes |
| Short-circuit Protection | yes |
| Switching Frequency DC [Hz] | 1000 Hz |
| Protection Class | III |
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Precise detection of very small, very flat or highly reflective components
- Easy setting of the range with IO-Link
- Very long range
