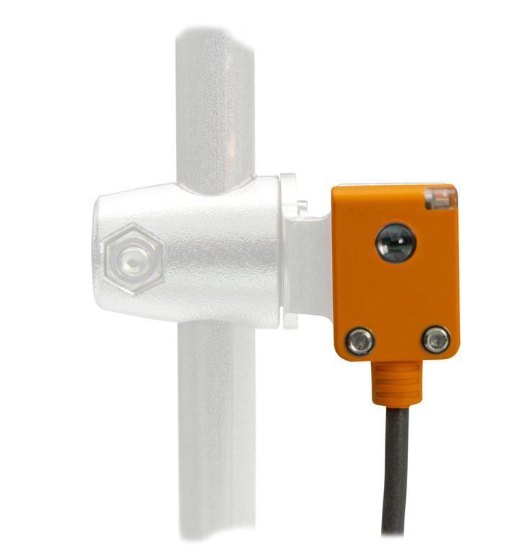

ifm O7S200 - O7S-OOKG/0,2m/AS | Photoelectric Sensor | 10-30 DC V
The ifm O7S200 - O7S-OOKG/0,2m/AS is a photoelectric sensor with operating voltage 10-30 DC V, housing rectangular and dimensions 20.3 x 15 x 9mm. ifm lists particularly small housing for use where space is restricted, for the reliable position detection in feeding and handling technology and small light spot and narrow light cone for detecting of small objects among its features.
- Ambient temperature: 25 °C to 60 °C
- Current consumption: 20; ((24 V))
- Dimensions: 20.3 x 15 x 9mm
- Housing: rectangular
- Light Source: red light
- Operating voltage: 10-30 DC V
- Protection class: III
- Reverse polarity protection: yes
- Specifications
- Features
- Downloads
| Light Source | red light |
| Ambient Temperature | -25 °C to 60 °C (-13 to 140 °F) |
| Current Consumption [mA] | 20; ((24 V)) |
| Housing | rectangular |
| Operating Voltage [V] | 10-30 DC V |
| Reverse Polarity Protection | yes |
| Switching Frequency DC [Hz] | 1000 Hz |
| Dimensions | 20.3 x 15 x 9 mm (0.799×0.591×0.354 in) |
| Protection Class | III |
| Weight | 14.1g |
- Particularly small housing for use where space is restricted
- For the reliable position detection in feeding and handling technology
- Small light spot and narrow light cone for detecting of small objects
- Ready for operation immediately thanks to fixed setting
- Visible red light for simple alignment
