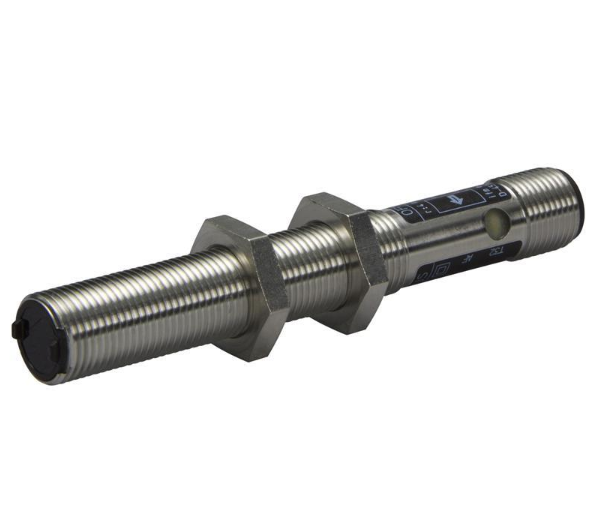

ifm OF5021 - OFS-OOKG/US | Photoelectric Sensor | 10-36 DC V
The ifm OF5021 - OFS-OOKG/US is a photoelectric sensor with operating voltage 10-36 DC V, housing threaded type and ambient temperature 25 °C to 60 °C. ifm lists robust metal housing for use in harsh industrial environments, long range and lED display to check the operating status among its features.
- Ambient temperature: 25 °C to 60 °C
- Current consumption: <25
- Housing: threaded type
- Light Source: infrared light
- Operating voltage: 10-36 DC V
- Protection class: II
- Reverse polarity protection: yes
- Short-circuit protection: yes
- Specifications
- Features
- Downloads
| Light Source | infrared light |
| Ambient Temperature | -25 °C to 60 °C (-13 to 140 °F) |
| Current Consumption [mA] | <25 |
| Housing | threaded type |
| Operating Voltage [V] | 10-36 DC V |
| Reverse Polarity Protection | yes |
| Short-circuit Protection | yes |
| Protection Class | II |
| Weight | 35.5g |
- Robust metal housing for use in harsh industrial environments
- Long range
- LED display to check the operating status
