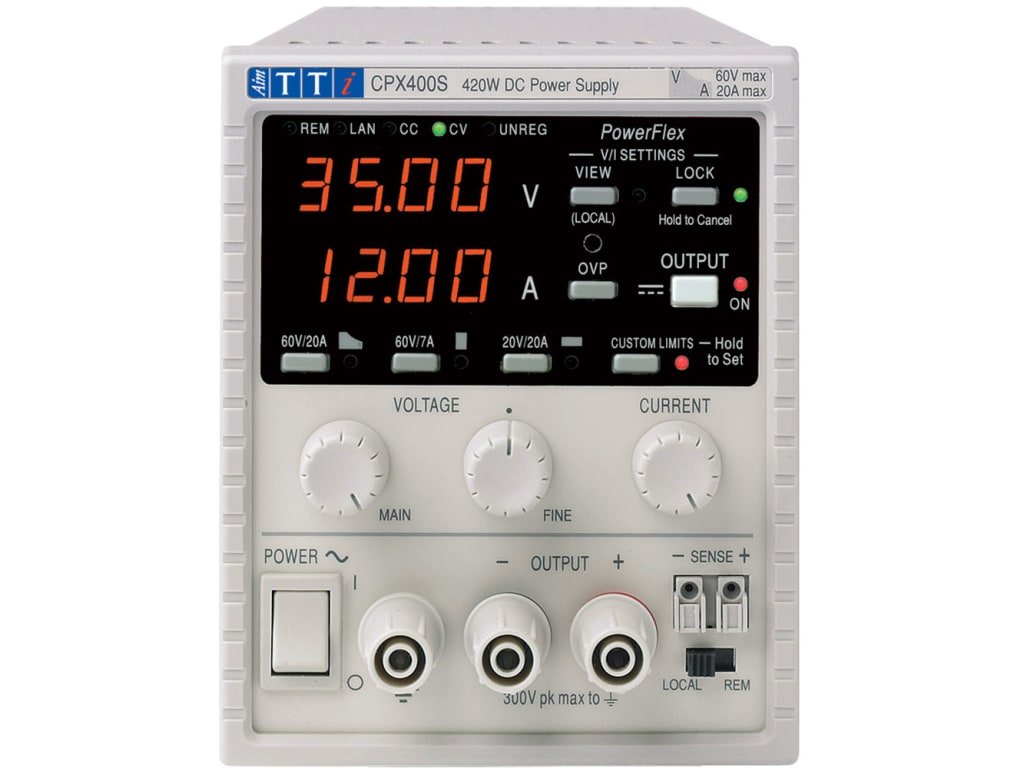

Aim TTi CPX400S | ''PowerFlex'' Max 60V or 20A | Single 420
One of Aim-most TTi's popular product lines is the CPX Series of laboratory DC power supply. There are tens of thousands of CPX models in use worldwide. They can deliver larger currents at lower voltages thanks to PowerFlex control, allowing them to adjust the power to fit a wider range of applications. With a total power range of 360 watts to 840 watts, the line consists of single and dual output variants.

Free UAE shipping available
- Specifications
- Features
- Downloads
Display | Dual 4-digit meters, 10mm (0·39�) LED. |
Operating Temperature | +5oC to +40oC, 20% to 80% RH |
Storage Temperature | -40oC to + 70oC |
Voltage | 110 to 240 volts +/-10% 50/60Hz. Installation Category II. |
Weight | Single - 4.25kg (9.35lb), Dual - 6.3kg (13.9lb) |
Low noise and good transient response
Isolated voltage tracking for versatility (D models)
True Analog controls - for ease of use
S-Lock function - instantly lock settings
Custom Limits - set your exact requirements
Bench/System DC Power Supply, PowerFlex Regulation, Smart Analog Controls Single Output, 60V/20A 420W, No Interfaces
CPX400S PowerFlex DC Power Supply with Manual Control Only
Single or Dual Outputs, 360 watts to 840 watts
PowerFlex regulation - for maximum flexibility
Two fully independent outputs (D models)
