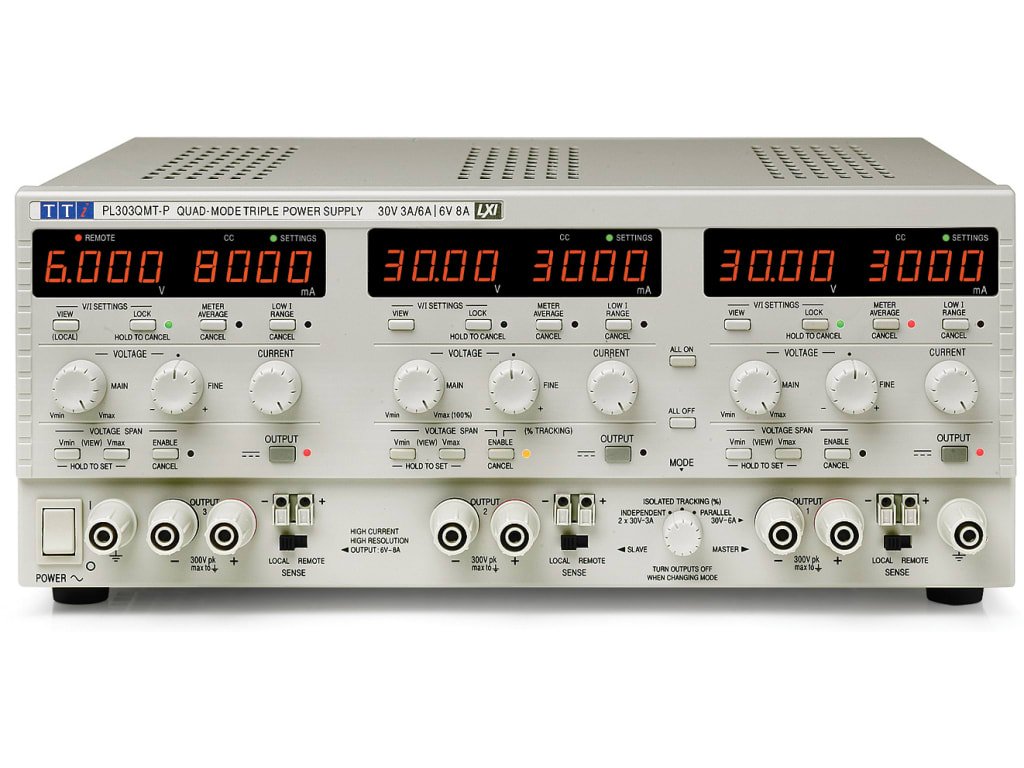

Aim-TTi PL303QMT-P(G) | Triple Output Linear DC Power Supply | USB/RS232/LAN(LXI)/GPIB
The Aim-TTi PL303QMT-P(G) is a triple output linear supply listed with 0-30V/0-3A and 0-6V/0-8A ratings and fitted with USB, RS232, LAN(LXI) and GPIB interfaces. It suits GPIB-controlled test systems that need three linear outputs.
Key features
- Three outputs: 0-30V/0-3A and 0-6V/0-8A ratings listed
- GPIB plus RS-232, USB and LXI compliant LAN interfaces
- High current low voltage output
- Independent, isolated tracking, ratio tracking and true parallel modes
- Linear regulation with true analogue controls
- S-Lock setting lock and V-Span voltage range customisation
- Low current range and current meter averaging
- Specifications
- Features
- Downloads
| Part Number | PL303QMT-P(G) |
| Brand | Aim-TTi |
| Outputs | 3 |
| Regulation | Linear |
| Output Rating | 0-30V/0-3A, 0-6V/0-8A (as listed) |
| Interfaces | USB, RS232, LAN(LXI), GPIB |
| Controls | Analogue, S-Lock, V-Span |
| Modes | Independent, isolated tracking, ratio tracking, true parallel |
Full digital remote control and readback
RS-232, USB and LAN (Ethernet), GPIB
LAN Interface conforms with LXI standard
Interfaces are opto-isolated from outputs
IVI Driver supplied
Analog remote control of V and I
Bench System DC Power Supply, Linear Regulation,
Smart Analog Controls Triple Ouput, 2 x 30V/3A plus 6V/6A, USB, RS232, LAN Interfaces and GPIB
2x (30V/3A) & 1x (6V/8A) or 1x (30V/6A) & 1x (6V/8A)
High performance linear regulated power supplies
PL303QMD-P(G) plus 0 to 6V at 0 to 8A
