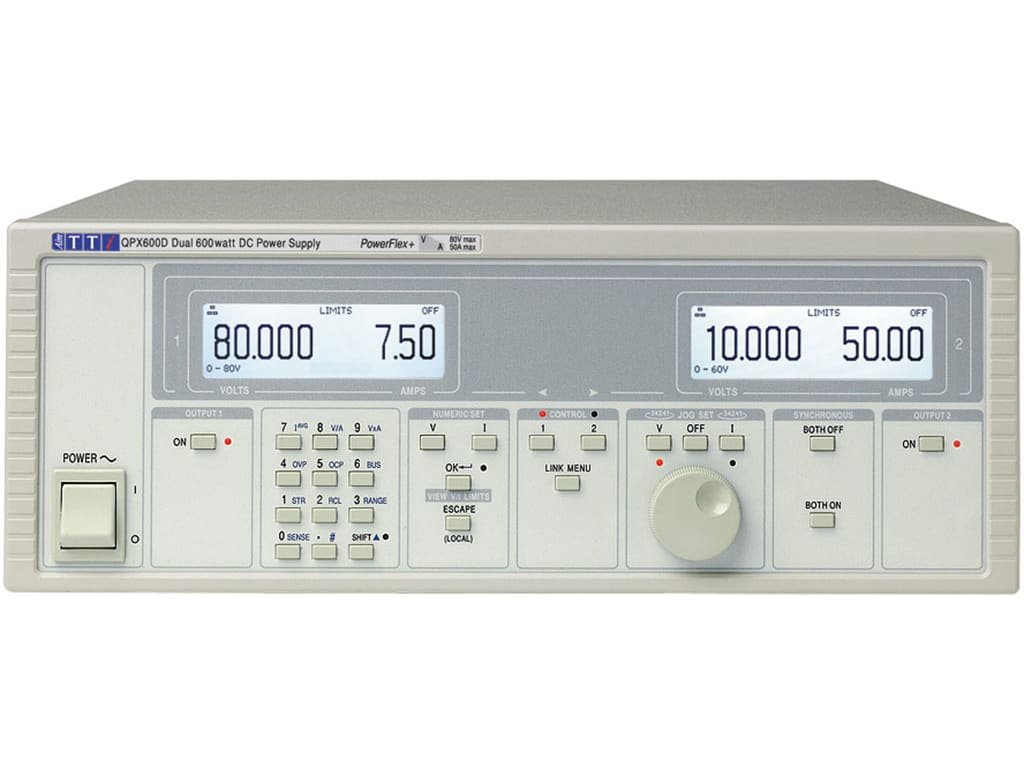

TTi QPX600D | Analog Power Supplies | Dual 600W 'PowerFlex' Max 80V or 50A /
The QPX600D is a 1.2kW dual output dc power supply that provides users with flexibility that standard laboratory power sources cannot match. Dual isolated 600 watt outputs with PowerFlex+ control enable a very wide variety of voltage/current combinations. The product includes analogue remote control interfaces and is ideal for both bench top and system applications. The QPX600DP adds a slew of digital interfaces, including USB, RS232, GPIB, and LXI-compliant LAN (Ethernet).

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 350 x 130 x 413mm (WxHxD) (3U height) . |
Display | Large dot-matrix black-on-white backlit LCD. |
Operating Temperature | +5oC to +40oC, 20% to 80% RH |
Storage Temperature | -40oC to + 70oC |
Voltage | 110V to 240V AC +/-10%, 50/60Hz. Installation Category II. |
Weight | 9.2kg (20lb). |
Smart metering and tracking functions facilitate series or parallel wiring for up to 160V or 100A
Low output noise and ripple
High setting resolution of 1mV
Variable OVP and OCP trips
Analog control interfaces for voltage and current
QPX600D Dual 600W 'PowerFlex' Max 80V or 50A / Analog Power Supplies
Dual independent or tracking 600 watt outputs
Ultra-wide range of voltage/current combinations
Up to 80V and up to 50A within each power envelope
Isolated tracking of voltage only, or voltage and current
