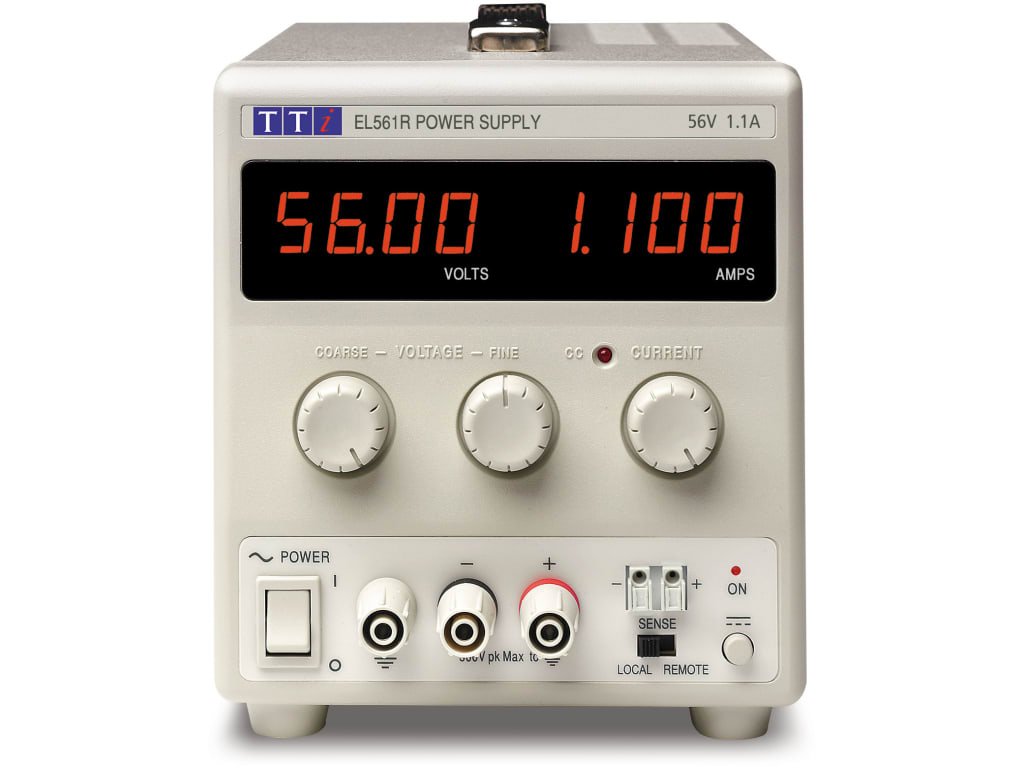

Aim-TTi EL561R | Linear Bench DC Power Supply | 56V/1.1A Single Output
The Aim-TTi EL561R is a single output linear bench supply rated 56V at 1.1A, giving the highest voltage in the EL-R range. It suits circuits that need a supply above 30V at modest current. The compact case leaves more room on a crowded bench.
Key features
- Single 56V/1.1A output
- Linear regulation with constant voltage or constant current operation
- Independent 4 digit voltage and current meters
- Switchable local or remote sensing
- Silent fan-free cooling
- DC output switch with automatic mode indication
- Detailed Description
- Specifications
- Features
- Downloads
EL-R & EX-R Series Single, Dual and Triple Output PSUs
EL-R Series - Precision dc bench power supplies - Linear Regulation
Single, dual or triple outputs, 30V/2A
Independent digital voltage and current meters for each output with 4 digit resolution
Switchable local or remote sensing
Constant voltage or constant current operation
Variable 1.5 - 5.0V auxiliary output at 2A (EL302RT)
Compact design uses less bench space
Silent fan-free cooling
DC output switches, automatic mode indication
EX-R Series - Precision dc bench power supplies - Mixed-mode Regulation
Independent digital voltage and current meters for each output with 4 digit resolution
Switchable local or remote sensing
Constant voltage or constant current operation
Compact design uses less bench space
Silent fan-free cooling
DC output switches, automatic mode indication
Approvals
Supplied with
| Part Number | EL561R |
| Brand | Aim-TTi |
| Outputs | 1 |
| Regulation | Linear |
| Output Rating | 56V/1.1A |
| Cooling | Fan-free |
| Interface | None |
| Metering | 4 digit V and I per output |
Constant voltage or constant current operation
Compact design uses less bench space
Silent fan-free cooling
DC output switches, automatic mode indication
RS232 or USB controlled models available (30V/2A single)
Variable 1.5 - 5.0V auxiliary output at 2A (EL302RT)
Bench DC Power Supply, Linear Regulation, Analog Controls 56V/1.1A Single
Independent digital voltage and current meters for each output with 4 digit resolution
Switchable local or remote sensing
