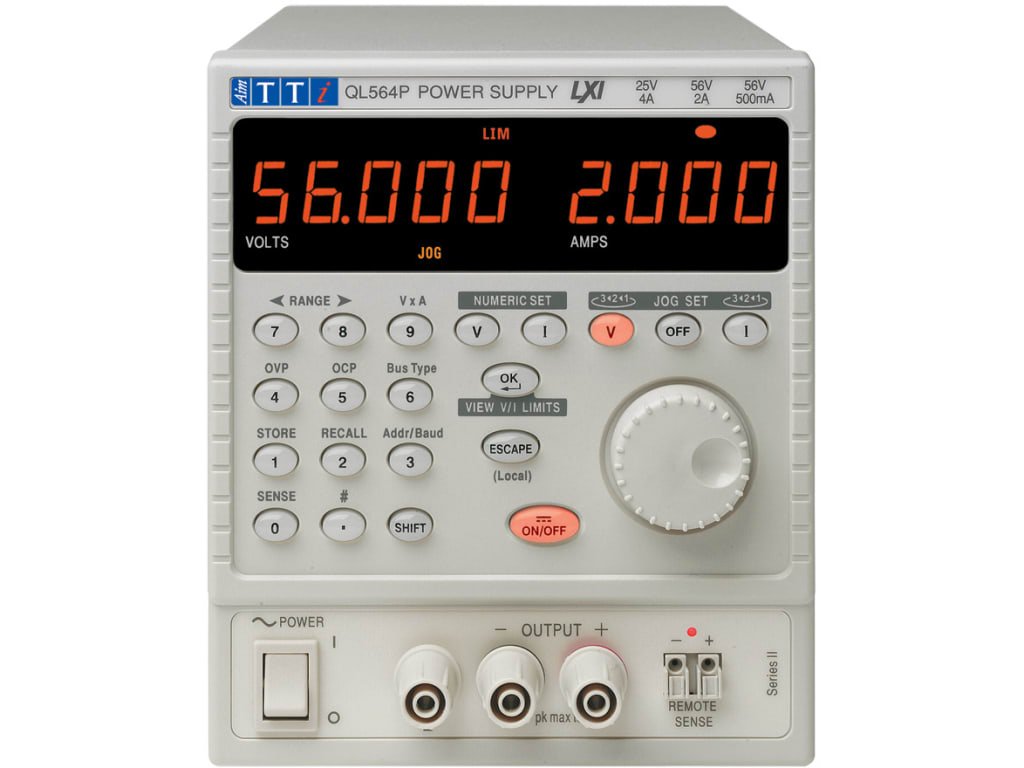

Aim-TTi QL564P | Programmable Precision DC Power Supply | 56V/2A or 25V/4A, USB/RS232/LAN
With USB, RS-232 and LXI-compliant LAN, the Aim-TTi QL564P is the programmable form of the single-output QL564. Its precision linear output provides 56V/2A or 25V/4A, and duplicate rear power and sense terminals help when the unit is built into an automated test rack. Front-panel numeric and rotary controls remain available for manual use.
Key features
- 56V/2A or 25V/4A single precision output
- Bus programmable via USB, RS-232 and LXI LAN
- Rear power and sense terminals in addition to the front
- Multiple voltage and current ranges
- OVP and OCP protection trips
- Detailed Description
- Specifications
- Features
- Downloads
The terminals are available at both the front and rear
The input is 250 max
The size is 140 x 160 x 290 mm
The weight is 5.5 kg
| Part Number | QL564P |
| Brand | Aim-TTi |
| Outputs | 1 |
| Regulation | Linear, precision |
| Interfaces | USB, RS-232, LAN (LXI) |
| Ranges | 56 V / 2 A or 25 V / 4 A |
| Rear Terminals | Power and sense |
| Protection | OVP and OCP trips |
Multiple non-volatile setting memories
OVP and OCP trips with alarm output
Selectable remote sense terminals
Linked-mode operation of main outputs (triple)
Auxiliary output fully variable 1.00V to 6.00V at 3A (triple)
Full control and read-back of all outputs via the bus
LAN interface conforms with LXI class C
Compact modular width for bench or rack, front and rear mounted terminals
1mV resolution at up to 56 volts
Multiple ranges for increased current flexibility
