Part Number : 1823-0

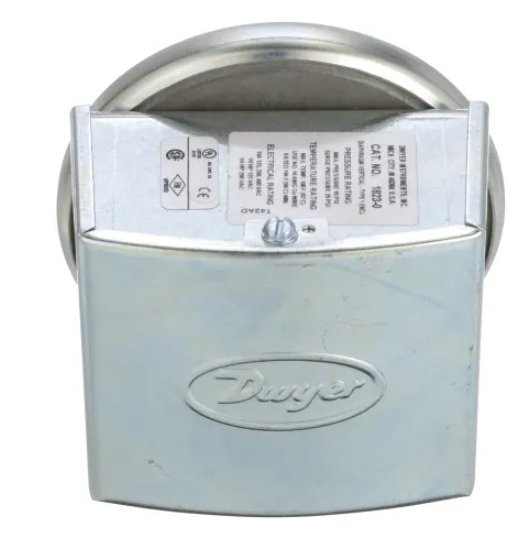

The Series 1800 Low Differential Pressure Switch for General Industrial Service is a necessity for industrial settings. It offers 2% repeatability for all but the most demanding applications, small size, and low cost. Mounting the switch on one side of a wall or panel with readily available adjustment on the other is possible thanks to the set point adjustment inside the mounting stud. FM approved, UL and CSA listed.

Availability: Sold out

Free Kuwait shipping available

Specifications
Features
Downloads

Operating Fluid	Air ; Non-Combustible Gas
Port Size	0.125 in
Range	0.15-5� w.c. Amp
Series	1800 Series
Standard	UL Listed ; CSA Listed
Type	Pressure Switch

For numerous industrial applications, a high-value switch is made possible by its compact size and repeatability.
Designed for easy wall and panel mounting to satisfy mounting specifications in the majority of industrial environments.
With pressure ranges of 0.07 in. W.C. to 85 in. W.C., this switch can be used in a variety of situations.
