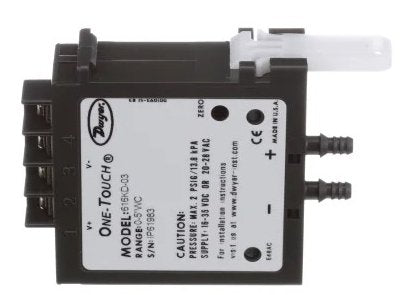

Dwyer Instruments 616KD-03 | Differential Pressure Sensor | 0-5 inH2O | 4-20MA | 20-28VAC/16-35VDC | 616KD Series
The Series 616KD Differential Pressure Transmitters with One-Touch® technology offer a straightforward solution for installers and maintenance professionals. These transmitters boast simplicity and cost-effectiveness, making them a preferred choice. With One-Touch® technology, calibration becomes hassle-free and efficient. Unlike traditional transmitters, there's no need for cumbersome turn pots or separate calibration devices. A single digital push button handles both ZERO AND SPAN calibration effortlessly. This eliminates the need for additional reference pressure sources and saves time typically spent on calibration. Simply let the unit sit at zero reference pressure, then push the button - and it's ready for operation. This time-saving feature proves invaluable over the product's lifespan compared to traditional transmitters, which require annual removal from service for calibration.

Free UAE shipping available
- Specifications
- Features
- Downloads
IP Rating | IP20 |
Measurement range | 0 to 5 inH2O |
Measuring Units | inH2O |
Mounting Type | DIN Rail Mount |
Output | 4-20 mA |
Pack Type | DIN |
Series | 616KD Series |
Supply Voltage AC | 20-28 VAC V ; 16-35 VDC V |
Termination | Terminal Block |
Type | Differential |
- No additional reference pressure sources and separate calibration devices are necessary.
- Back mounting tabs are integral to the molded housing.
- Easy-to-wire open screw terminals at the top of the housing.
