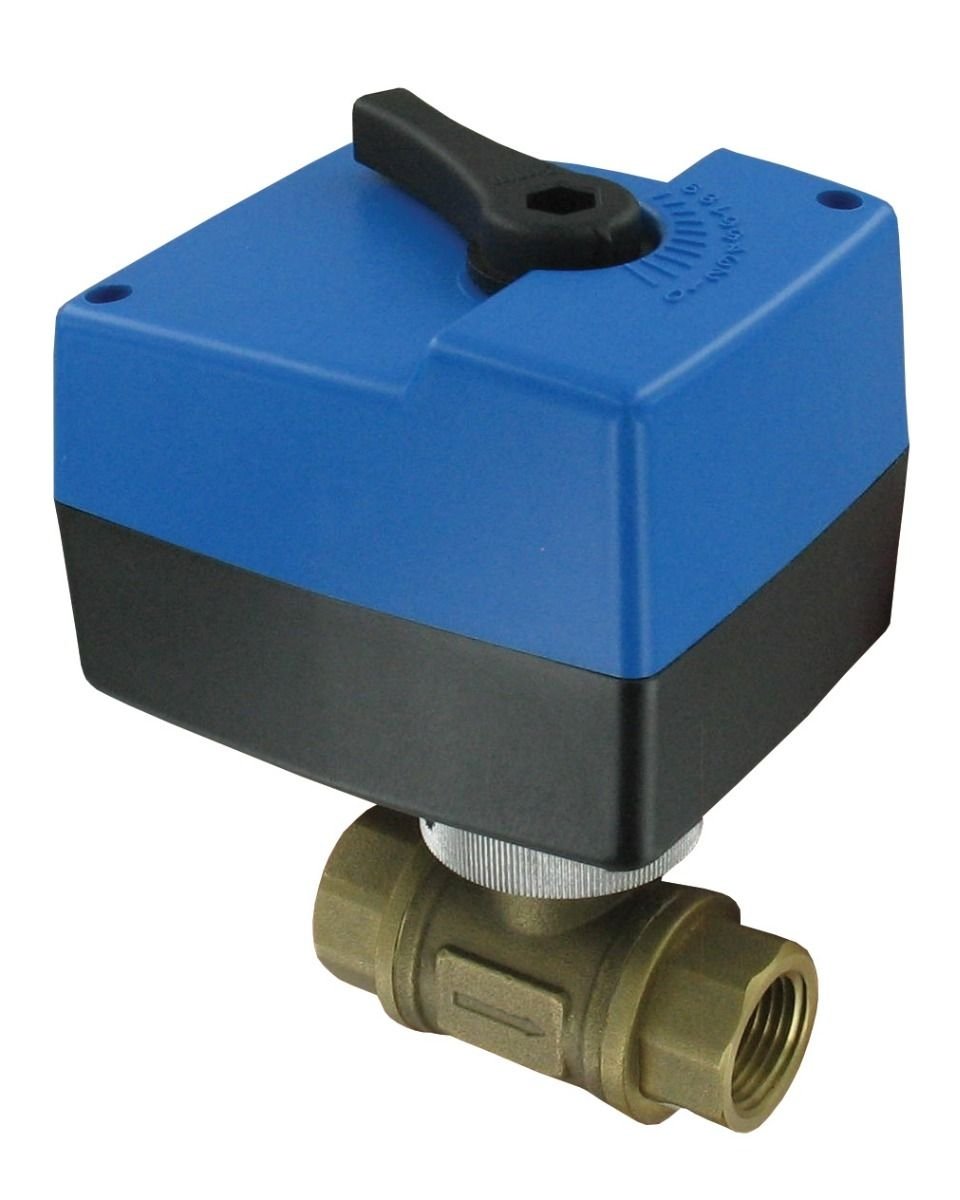

Dwyer Instruments HBAV0314 | 2-Way ball valve | 3/4" NPT | Floating | 24 VAC
A motorized 2-way ball valve with a 3/4" NPT connection, floating control and a 24 VAC actuator, built for automated on/off or flow-modulating HVAC and process control. Free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. HBAV0314
The Dwyer HBAV0314 combines a 3/4" NPT ball valve body with an electric actuator, replacing manual operation with automated control from a BMS or local controller. It accepts a floating three-point control signal for open, close and stop commands, making it suitable for automated valve operation in HVAC and process control systems.
The 24 VAC actuator supply is suitable for common building and industrial control applications. The valve maintains full-bore, low-pressure-drop characteristics, helping preserve flow capacity when the valve is open.
The HBAV0314 is a practical choice for retrofitting an existing manually operated shutoff point or specifying a new automated valve for HVAC and process control loops requiring remote or scheduled operation.
Need a different specification?
The Dwyer range also includes the HBAV0324, a 3/4" NPT electric ball valve with modulating control and 24 VAC supply, allowing you to select the control type that matches your application.
Ready to order the HBAV0314?
Speak to our team for pricing, availability and application support. Call +971 6 5436933.
Key Benefits
- 3/4" NPT ball valve body with electric actuator
- Floating three-point control for automated open, close and stop operation
- 24 VAC actuator supply for common control applications
- Full-bore ball design helps maintain low pressure drop when open
- Suitable for BMS and local controller integration
- Practical retrofit option for existing manual shutoff points
- Suitable for automated HVAC and process control applications
Who This Product Is Best For
- HVAC controls contractors requiring a motorized 2-way valve in 3/4" NPT
- BMS integrators using floating three-point valve control
- Process control engineers requiring automated shutoff operation
- Building and industrial facilities upgrading manual valves to automated control
How to Use
- Install the HBAV0314 in the HVAC or process line using the 3/4" NPT connection.
- Connect the 24 VAC actuator supply according to the installation requirements.
- Wire the floating three-point control signal to the BMS or local controller.
- Configure the controller for the required open, close and stop operation.
- Verify that the valve responds correctly to the control commands before placing the system into normal operation.
Frequently Asked Questions
What control signal does the HBAV0314 use?
The HBAV0314 uses floating three-point control with open, close and stop commands.
What supply voltage does the HBAV0314 require?
It requires a 24 VAC actuator supply.
What is the NPT size of the HBAV0314?
The valve has a 3/4" NPT connection.
Is the HBAV0314 a full-bore valve?
Yes. The HBAV0314 uses a full-bore ball design intended to maintain low pressure drop when open.
Can the HBAV0314 replace an existing manual ball valve?
Yes. It can be used as a retrofit option for automating an existing manually operated 3/4" NPT shutoff point, subject to application and installation requirements.
Is the HBAV0314 suitable for BMS control?
Yes. Its floating three-point control can be connected to a compatible BMS or local controller providing open, close and stop outputs.
What is the difference between the HBAV0314 and HBAV0324?
Both models use a 3/4" NPT valve size and 24 VAC supply, but the HBAV0314 uses floating control while the HBAV0324 uses modulating control. Select the model that matches your controller and application requirements.
