Part Number : 103-138H

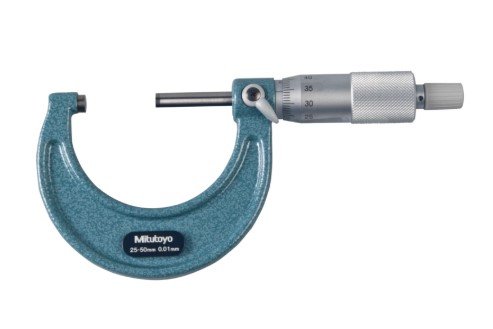

The Mitutoyo 103-138H Outside Micrometer offers precise measurements with graduation of 0.01mm. It provides an accuracy of ±0.002mm, ensuring high reliability in measurement. With a range of 25mm to 50mm, it is ideal for measuring small to medium-sized parts. The micrometer features a hardened steel anvil and spindle for durability and long-term accuracy. Its ergonomic design allows for comfortable and precise operation. A perfect tool for precision measurement in manufacturing, automotive, and engineering applications.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-0.002 mm
Contents	Adjustment Tool, Case, Stand, User Manual
Flatness	0.6 µm
Inch-Metric	Metric
Maximum measurement (mm/inch)	50mm
Measuring Force	5 - 10 N
Minimum Measurement (mm / inch)	25mm
Resolution	0.01 mm
Scale	Thimble and sleeve satin chrome finish, ƒ ̧18 mm
Spindle pitch	0.5 mm
Spindle thread	With spindle lock, ƒ ̧6,35 mm (¢°¤300 mm) ƒ ̧ 8 mm (>300 mm)
Type	Outside Micrometer
Weight	215 g

High Precision: Provides a graduation of 0.01mm for accurate measurements.
Exceptional Accuracy: Delivers an accuracy of ±0.002mm for reliable results.
Measurement Range: Suitable for measuring objects within the 25mm to 50mm range.
Durable Construction: Features a hardened steel anvil and spindle for long-lasting performance.
Ergonomic Design: Designed for ease of use with a comfortable grip for precise handling.
Versatile Application: Ideal for precision measurements in automotive, manufacturing, and engineering industries.

DOWNLOAD CATALOG

Mitutoyo 103-138H | Outside Micrometer | Series 103 | Graduation 0.01mm | Accuracy ±0.002mm | Range 25 to 50mm

Mitutoyo 324-351-30 | Digital Gear Tooth Micrometer | Series 324 | Resolution 0.001mm | Accuracy ± 0.004mm | Range 0 to 25mm

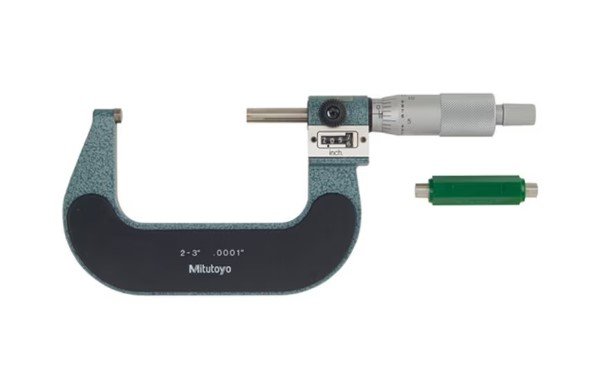

Mitutoyo 193-213 | Digit Outside Micrometer | Series 193 | Graduation 0.0001 inch | Accuracy ± 0.0001 inch | Range 2 to 3 inch

Mitutoyo 340-720 | Digital Micrometer | Interchangeable Anvil | Series 340 | Resolution 0.0001 inch | Measuring Force 10 to 15N | Range 12 to 18 inch

Mitutoyo 395-351 | Digimatic Tube Micrometer | Spherical Anvil | Series 395 | Graduation 0.00005 inch | Accuracy ± 0.0001 inch | Range 0 to 1 inch

Mitutoyo 122-103-10 | Blade Micrometer | Series 122 | Graduation 0.01mm | Accuracy ± 0.003mm | Range 50 to 75mm

Mitutoyo 122-102-10 | Blade Micrometer | Series 122 | Graduation 0.01mm | Accuracy ± 0.003mm | Range 25 to 50mm

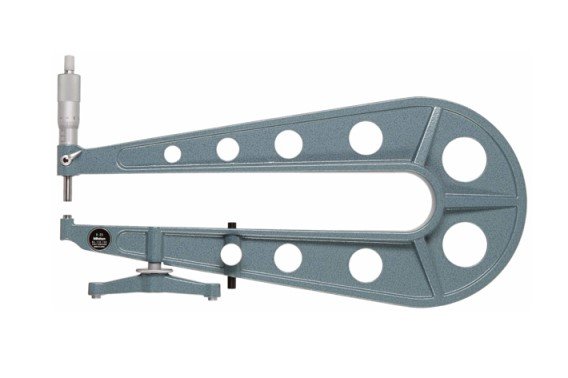

Mitutoyo 118-103 | Sheet Metal Micrometer | Flat Anvil or Spindle | Series 118 | Graduation 0.01mm | Throat Depth 300mm | Range 0 to 25mm
