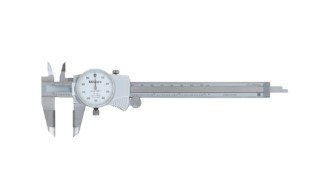

Mitutoyo 505-738 | Dial Caliper | Series 505 | ID/OD Carbide Tipped Jaws | Graduation 0.001 Inch | Accuracy ±0.001 Inch | Range 0 to 6 Inch | Weight 175 g
Part No. 505-738 | Range 0"–6" (0–152.4 mm) | Graduation 0.001"
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview
The Mitutoyo 505-738 dial caliper measures outside, inside, depth and step dimensions across a 0"–6" (0–152.4 mm) range. Its clear analogue dial provides a 0.001" graduation and ±0.001" accuracy without batteries or an electronic display.
Both the ID and OD jaws are carbide-tipped to resist wear from abrasive and hardened materials, helping maintain the measuring faces during regular workshop use. The caliper is constructed from hardened stainless steel and weighs 175 g.
The 505-738 is suited to machine shops, QC inspection, power and desalination plant maintenance teams, and oil and gas service contractors in Kuwait.
For close-tolerance measurements, allow the caliper and workpiece to reach the same temperature before measuring. Steel expands approximately 11.5 μm per metre per °C; over 152.4 mm, a 10 °C temperature difference can result in approximately 17.5 μm of dimensional change.
Key Benefits
-
ID/OD carbide-tipped jaws resist wear from abrasive and hardened materials.
-
0.001" graduation provides a clear analogue measurement.
-
±0.001" stated accuracy.
-
Measures outside, inside, depth and step dimensions with one instrument.
-
Hardened stainless steel construction supports regular workshop use.
-
Battery-free dial operation eliminates dependence on an electronic display.
-
0"–6" (0–152.4 mm) measuring range covers common industrial measurement requirements.
-
175 g weight supports convenient routine handling.
-
Part of the Mitutoyo 505 series dial caliper range.
Who This Product Is Best For
-
Machinists and fitters needing a reliable everyday caliper.
-
QC inspectors who prefer an analogue dial reading.
-
Maintenance teams in power and desalination plants.
-
Oil and gas service contractors in Kuwait.
-
Machine shops and fabrication workshops requiring carbide-tipped ID and OD jaws.
-
Training centres and apprentices learning conventional measurement methods.
-
Buyers replacing digital calipers where battery-free operation is preferred.
How to Use
-
Clean the ID and OD jaws and other measuring surfaces before use.
-
Close the jaws gently and check the dial zero.
-
Position the appropriate jaws around or inside the feature being measured.
-
Keep the caliper square and aligned with the workpiece.
-
Close the jaws gently without excessive force.
-
Read the main scale and dial to obtain the measurement.
-
Use the depth bar or step surfaces for depth and step measurements.
-
Clean the instrument and store it safely after use.
Frequently Asked Questions
What range does the Mitutoyo 505-738 dial caliper measure?
It measures 0"–6" (0–152.4 mm).
Can it measure inside and depth dimensions?
Yes. The 505-738 measures outside, inside, depth and step dimensions.
Are both the ID and OD jaws carbide-tipped?
Yes. The model is specified with ID/OD carbide-tipped jaws designed to resist wear from abrasive and hardened materials.
Why choose a dial caliper over a digital one?
The dial design requires no batteries and has no electronic display, providing a conventional analogue measurement method.
What is the graduation and accuracy?
The graduation is 0.001" and the stated accuracy is ±0.001".
Which model should I choose if my part is outside 0"–6"?
The 505-738 covers 0"–6". Other Mitutoyo 505 series models with the same nominal range can be selected according to the required jaw configuration and application, including the 505-736 and 505-742.
Can the Mitutoyo 505-738 be recalibrated?
Yes. Periodic calibration through an ISO/IEC 17025-accredited calibration service can help maintain measurement traceability.
How should I store and care for it?
Wipe the measuring faces clean after use, keep the instrument away from direct sunlight and coolant, avoid dropping it, and check the zero regularly. Periodic calibration is recommended when measurement traceability is required.
How do I order the Mitutoyo 505-738 dial caliper in Kuwait?
Pricing is quote-based. Call or WhatsApp +965 9807 4888 with the model number and required quantity to request pricing and availability.
