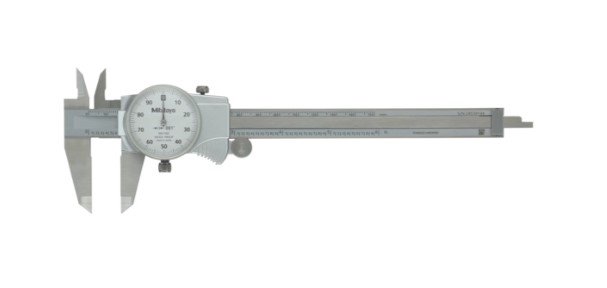

Mitutoyo 505-742J | Dial Caliper | Series 505 | Type Silver Cover | Graduation 0.001 Inch | Accuracy ±0.001 Inch | Range 0 to 6 Inch | Weight 175 g
Part No. 505-742J | Range 0"–6" (0–152.4 mm) | Graduation 0.001"
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview
The Mitutoyo 505-742J dial caliper measures outside, inside, depth and step dimensions across a 0"–6" (0–152.4 mm) range. Its clear analogue dial provides a 0.001" graduation and ±0.001" accuracy without batteries or an electronic display.
The caliper is built from hardened stainless steel and features an ultra-smooth sliding mechanism with strong shock protection. Titanium coating on the sliding surfaces supports durability, while the bright yellow dial uses large characters for easy reading. The model has a silver cover and weighs 175 g.
The 505-742J is suitable for oil and gas maintenance workshops, refinery and petrochemical shutdown crews, CNC machine shops, QC inspection and general industrial measurement in Kuwait.
For close-tolerance measurements, allow the caliper and workpiece to reach the same temperature before measuring. Steel expands approximately 11.5 μm per metre per °C; over 152.4 mm, a 10 °C temperature difference can result in approximately 17.5 μm of dimensional change.
Key Benefits
-
Clear analogue dial reading without batteries or an electronic display.
-
0.001" graduation provides precise measurement readings.
-
±0.001" stated accuracy.
-
Measures outside, inside, depth and step dimensions with one tool.
-
Ultra-smooth sliding mechanism supports consistent operation.
-
Shock-protected dial mechanism for regular workshop use.
-
Titanium-coated sliding surfaces support durability.
-
Hardened stainless steel construction for industrial environments.
-
Bright yellow dial with large characters improves readability.
-
Silver cover and 175 g weight support convenient workshop handling.
-
Part of the Mitutoyo 505 series dial caliper range.
Who This Product Is Best For
-
Machinists and fitters needing a reliable everyday caliper.
-
QC inspectors who prefer an analogue dial reading.
-
Maintenance teams in machine shops and industrial facilities.
-
Oil and gas maintenance workshops.
-
Refinery and petrochemical shutdown crews.
-
CNC machine shops and fabrication workshops.
-
Training centres and apprentices learning conventional measurement.
-
Buyers replacing digital calipers where battery-free operation is preferred.
How to Use
-
Clean the jaws and measuring surfaces before use.
-
Close the jaws gently and check the dial zero.
-
Open the jaws and position them around the feature being measured.
-
Keep the caliper square and aligned with the workpiece.
-
Close the jaws gently without applying excessive force.
-
Read the whole-unit value from the beam scale and add the dial reading.
-
Use the depth bar or step surfaces for depth and step measurements.
-
Clean the instrument and store it safely after use.
Frequently Asked Questions
What range does the Mitutoyo 505-742J dial caliper measure?
It measures 0"–6" (0–152.4 mm).
Can it measure inside and depth dimensions?
Yes. The 505-742J measures outside, inside, depth and step dimensions.
Why choose a dial caliper over a digital one?
The dial design requires no batteries and has no electronic display, providing a conventional analogue measurement method.
How do I read the dial?
Read the whole-unit measurement from the beam scale, then add the dial reading. The graduation is 0.001" per division.
What is the cover colour?
The 505-742J has a silver cover and a bright yellow dial with large characters for readability.
What are the key construction features of the 505-742J?
It uses hardened stainless steel construction, an ultra-smooth sliding mechanism, shock protection and titanium-coated sliding surfaces.
Which model should I choose if my part is outside 0"–6"?
The 505-742J covers 0"–6". The Mitutoyo 505-742 is another 0"–6" option, while the 505-744 also covers 0"–6" with OD carbide-tipped jaws.
Can the Mitutoyo 505-742J be recalibrated?
Yes. Periodic calibration through an ISO/IEC 17025-accredited calibration service can help maintain measurement traceability.
How should I store and care for it?
Wipe the measuring faces clean after use, keep the instrument away from direct sunlight and coolant, avoid dropping it, and check the zero regularly. Periodic calibration is recommended when measurement traceability is required.
How do I order the Mitutoyo 505-742J dial caliper in Kuwait?
Pricing is quote-based. Call or WhatsApp +965 9807 4888 with the model number and required quantity to request pricing and availability.
