Mitutoyo 505-744 | Dial Caliper | Series 505 | OD Carbide Tipped Jaws | Graduation 0.001 Inch | Accuracy ±0.001 Inch | Range 0 to 6 Inch | Weight 175 g
Part No. 505-744 | Range 0"–6" (0–152.4 mm) | Graduation 0.001"
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview

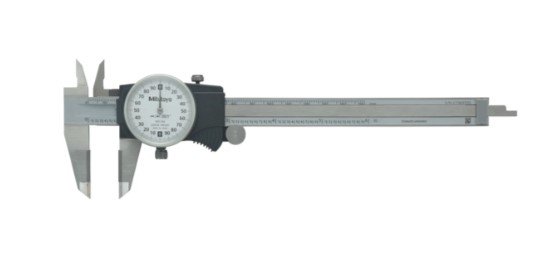

The Mitutoyo 505-744 dial caliper measures outside, inside, depth and step dimensions across a 0"–6" (0–152.4 mm) range. Its clear analogue dial provides a 0.001" graduation and ±0.001" accuracy without batteries or an electronic display.
The OD jaws are carbide-tipped to resist wear from abrasive and hardened materials, while the hardened stainless steel construction supports regular workshop use. At 175 g, the caliper is suitable for routine dimensional checks in machine shops and maintenance environments.
The 505-744 is well suited to oil and gas maintenance workshops, refinery and petrochemical shutdown crews, CNC machine shops, QC inspection and general industrial measurement in Kuwait.
Temperature can affect close-tolerance measurements. Steel expands approximately 11.5 μm per metre per °C. Over 152.4 mm, a 10 °C temperature difference can result in approximately 17.5 μm of dimensional change. Allow the workpiece and caliper to reach the same temperature before taking a final measurement.
Key Benefits
-
Clear analogue dial reading without batteries or an electronic display.
-
0.001" graduation for precise measurement reading.
-
±0.001" stated accuracy.
-
OD carbide-tipped jaws resist wear from abrasive and hardened materials.
-
Measures outside, inside, depth and step dimensions with one tool.
-
Hardened stainless steel construction for regular workshop use.
-
0"–6" (0–152.4 mm) range covers common industrial measurement requirements.
-
175 g weight supports convenient routine handling.
-
Part of the Mitutoyo 505 series dial caliper range.
Who This Product Is Best For
-
Machinists and fitters needing a reliable everyday caliper.
-
QC inspectors who prefer an analogue dial reading.
-
Oil and gas maintenance teams performing routine dimensional checks.
-
Refinery and petrochemical shutdown crews.
-
CNC machine shops and fabrication workshops.
-
Training centres and apprentices learning conventional measurement.
-
Buyers replacing digital calipers where battery-free operation is preferred.
How to Use
-
Clean the jaws and measuring surfaces before use.
-
Close the jaws gently and check the dial zero.
-
Open the jaws and position them around the feature being measured.
-
Keep the caliper square and aligned with the workpiece.
-
Close the jaws gently without applying excessive force.
-
Read the main scale and dial to obtain the measurement.
-
Use the depth bar or step surfaces for depth and step measurements.
-
Clean the instrument and store it safely after use.
Frequently Asked Questions
What range does the Mitutoyo 505-744 dial caliper measure?
It measures 0"–6" (0–152.4 mm).
Can it measure inside and depth dimensions?
Yes. It measures outside, inside, depth and step dimensions.
Why choose a dial caliper over a digital one?
The dial design requires no batteries and has no electronic display, providing a conventional analogue measurement method.
What are the carbide-tipped jaws for?
The carbide-tipped OD jaws resist wear when measuring abrasive or hardened materials, helping maintain the measuring faces over regular use.
What is the graduation and accuracy?
The graduation is 0.001" and the stated accuracy is ±0.001".
Which model should I choose if my part is outside 0"–6"?
The 505-744 covers 0"–6". The Mitutoyo 505-742J is another 0"–6" option, while the 505-737 provides a longer 0"–8" range.
Can the Mitutoyo 505-744 be recalibrated?
Yes. Periodic calibration through an ISO/IEC 17025-accredited calibration service can help maintain measurement traceability.
How should I store and care for it?
Wipe the measuring faces clean after use, keep the instrument away from direct sunlight and coolant, avoid dropping it, and check the zero regularly. Periodic calibration is recommended when measurement traceability is required.
How do I order the Mitutoyo 505-744 dial caliper in Kuwait?
Pricing is quote-based. Call or WhatsApp +965 9807 4888 with the model number and required quantity to request pricing and availability.
