Mitutoyo 505-746 Dial Caliper 0 - 12", Graduation .001", .1"/rev
Part No. 505-746 | Range 0"–12" (0–304.8 mm) | Graduation 0.001" | 0.1"/rev
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview

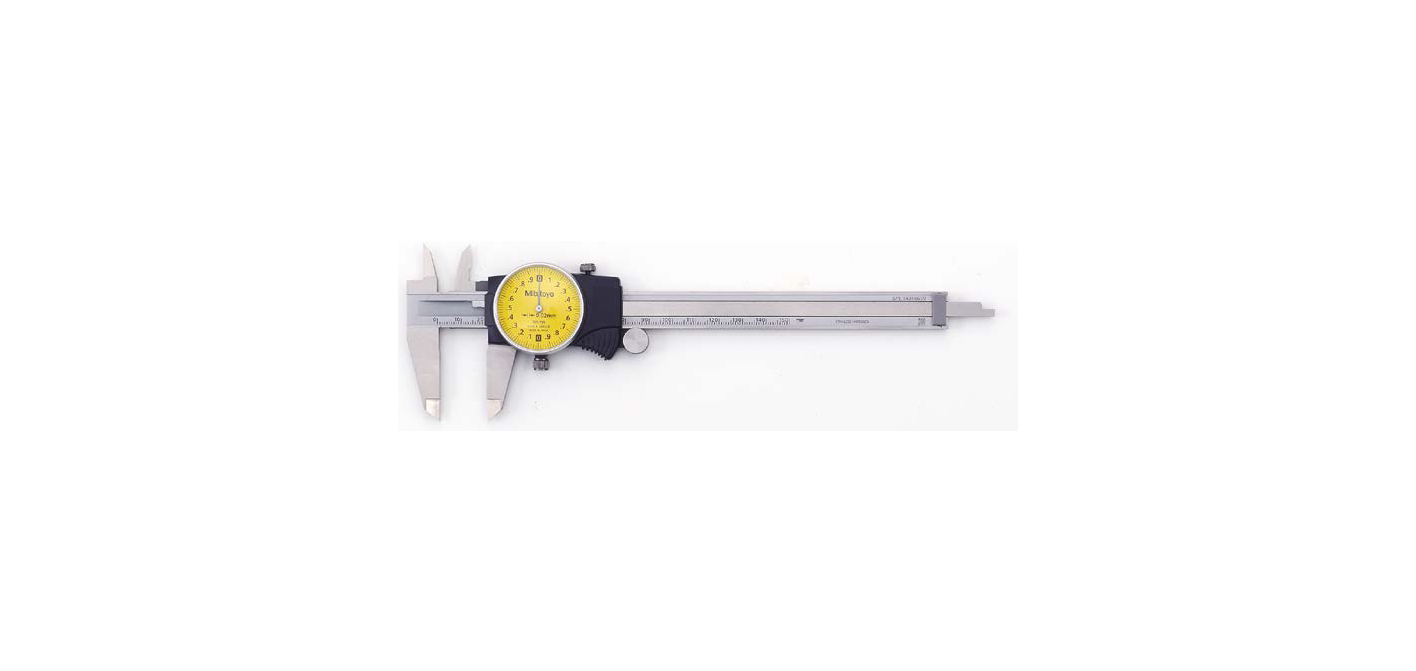

The Mitutoyo 505-746 dial caliper measures outside, inside, depth and step dimensions across a 0"–12" (0–304.8 mm) range. Its easy-to-read analogue dial provides 0.001" graduation with 0.1" per revolution, giving clear readings for routine dimensional inspection without batteries or an electronic display.
Constructed from hardened stainless steel, the caliper features ultra-smooth sliding and strong shock protection for dependable daily workshop use. The bright yellow dial has large characters for easy reading, while the standard outside and inside jaws, depth bar and step capability allow one instrument to handle a wide range of measurement tasks.
The Mitutoyo 505-746 is suitable for machine shops, QC inspection, power and desalination plant maintenance teams, fabrication workshops and oil and gas service contractors in Kuwait.
For close-tolerance measurements, allow the caliper and workpiece to reach the same temperature before measuring. Steel expands by approximately 11.5 μm per metre per °C. At 304.8 mm, a 10 °C temperature difference can shift the measurement by approximately 35.1 μm.
Key Benefits
-
Outside, inside, depth and step measurement in one tool
-
0"–12" (0–304.8 mm) measuring range
-
0.001" graduation for clear dimensional readings
-
0.1" per revolution dial configuration
-
Ultra-smooth sliding for controlled measurement
-
Shock protection for demanding workshop environments
-
Hardened stainless steel construction for durability
-
Bright yellow dial with large, easy-to-read characters
-
Battery-free analogue operation with no electronic display
-
Mitutoyo 505 series design for everyday dimensional inspection
Who This Product Is Best For
-
Machinists and fitters requiring a dependable everyday caliper
-
QC inspectors who prefer analogue dial measurement
-
Maintenance teams in power and desalination facilities
-
Oil and gas service contractors and maintenance workshops
-
Fabrication and machining workshops
-
Training centres and apprentices learning dimensional measurement
-
Buyers replacing digital calipers with a battery-free analogue instrument
How to Measure
-
Clean the measuring faces and close the jaws.
-
Check the dial zero before taking the measurement.
-
Open the jaws and position them gently around the feature.
-
Keep the caliper square and properly aligned with the workpiece.
-
Close the jaws gently without applying excessive force.
-
Read the whole-unit value from the main scale and add the dial reading at 0.001" per graduation.
-
Use the depth bar or step surfaces when measuring those features.
-
Clean the measuring surfaces after use and store the caliper safely.
Frequently Asked Questions
What range does the Mitutoyo 505-746 dial caliper measure?
It measures from 0" to 12" (0–304.8 mm).
Can the 505-746 measure inside and depth dimensions?
Yes. It measures outside, inside, depth and step dimensions.
What is the graduation of the Mitutoyo 505-746?
The graduation is 0.001".
What does 0.1" per revolution mean?
The dial completes one full revolution for 0.1" of movement. Individual dial graduations correspond to 0.001".
Why choose a dial caliper over a digital caliper?
The 505-746 uses an analogue dial and does not require batteries or an electronic display. This provides a straightforward measurement solution for routine workshop use.
How do I read the Mitutoyo 505-746 dial?
Read the whole-unit value from the beam scale and then add the dial reading. Each graduation represents 0.001".
Which model should I choose for a 0"–12" measurement range?
The 505-746 provides a 0"–12" (0–304.8 mm) range. Other Mitutoyo 505-series models have different configurations, so compare the specific range and dial/jaw arrangement required for your application.
Can the Mitutoyo 505-746 be recalibrated?
Yes. Periodic calibration through an appropriate calibration service can verify measurement performance and maintain traceability where required.
How should I store and care for the 505-746?
Wipe the measuring faces clean after use, keep the instrument away from direct sunlight and coolant during storage, avoid dropping it, and check the zero regularly. Periodic calibration can be scheduled according to your quality requirements.
How do I order the Mitutoyo 505-746 in Kuwait?
For pricing and availability, call or WhatsApp General Tech Services LLC at +965 9807 4888 with the model number and required quantity.
Request Pricing & Availability
Contact General Tech Services LLC for current pricing and availability of the Mitutoyo 505-746 dial caliper in Kuwait.
Call or WhatsApp +965 9807 4888 to request a quote.
