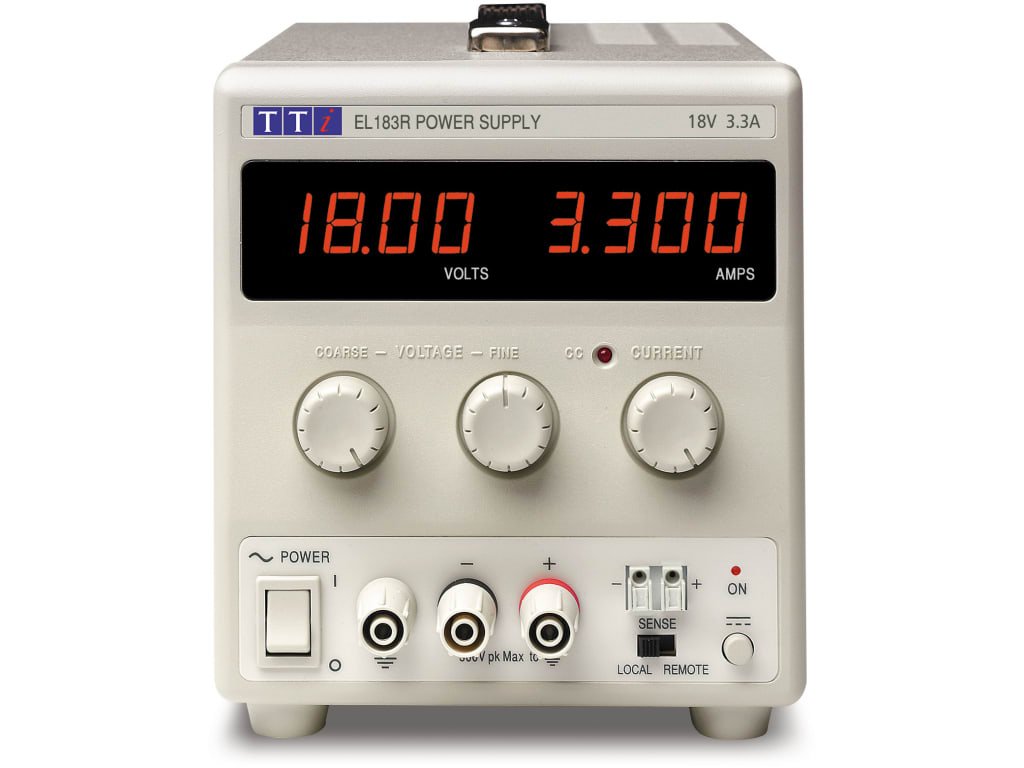

TTi EL183R | Digital voltage and current meters | Single 0-18V/0-3A
The most popular EL series served as the foundation for the new EL-R series. The EL-R series offers significantly higher precision while maintaining the ease of use that many users of bench-top power supplies want. It does this by incorporating four digit metres and switchable remote sensing. There are eight variants available, ranging in power from 30 watts to 130 watts, with single, dual, and triple outputs.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | Single output models - 140x160x295 mm (WxHxD). Dual and triple output models - 260x160x295 mm (WxHxD). |
Operating Temperature | +5°C to +40°C, 20% to 80% RH |
Storage Temperature | -40°C to + 70°C |
Voltage | 230V AC or 115V AC +/- 10%, 50/60Hz. Installation Category II |
Weight | 4.4kg |
Compact design uses less bench space
Silent fan-free cooling
DC output switches, automatic mode indication
RS232 or USB controlled models available (30V/2A single)
Independent digital voltage and current meters for each output with 4 digit resolution
Switchable local or remote sensing
Constant voltage or constant current operation
Variable 1.5 - 5.0V auxiliary output at 2A (EL302RT)
