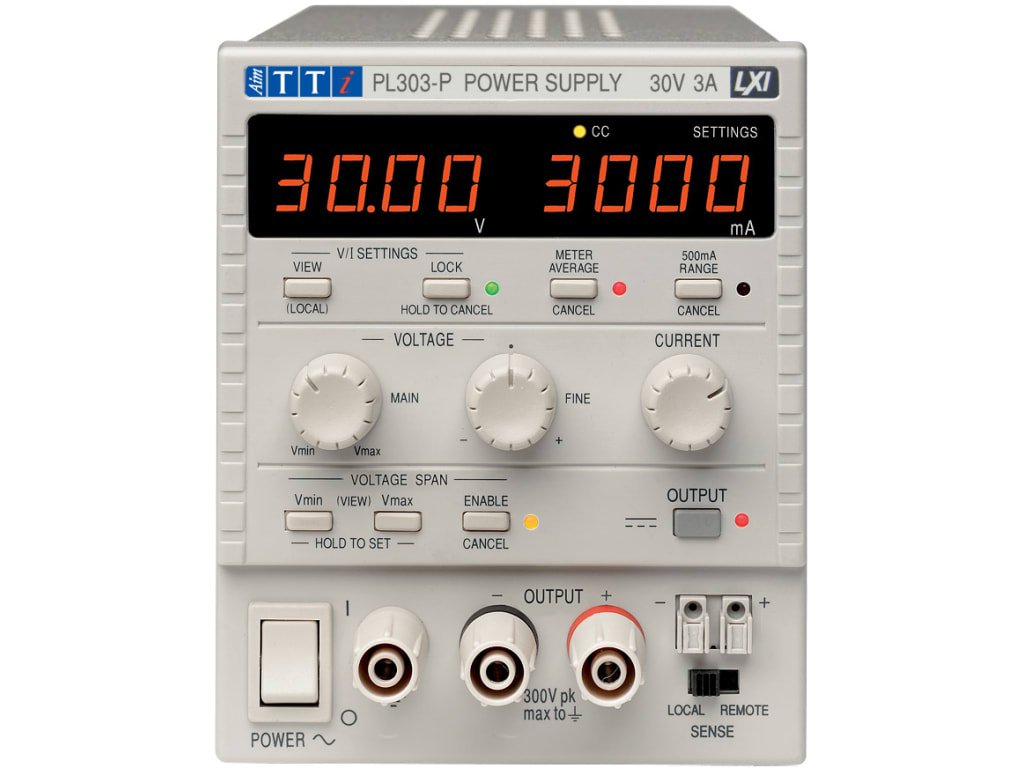

Aim-TTi PL303-P | Linear Regulated DC Power Supply | 30V/3A, USB/RS232/LAN/Analogue
The Aim-TTi PL303-P is the interfaced 30V/3A single output PL supply, with USB, RS232, LAN(LXI) and analogue remote control. It suits engineers who want a compact linear supply that can be programmed from a PC or test system.
Key features
- Single 30V/3A output
- RS-232, USB and LXI compliant LAN interfaces
- Analogue remote control of V and I; front and rear terminals
- Linear regulation with true analogue controls
- S-Lock setting lock and V-Span voltage range customisation
- Low current range and current meter averaging
- DC output switches and 'view limits' button
- Detailed Description
- Specifications
- Features
- Downloads
New PL & New PL-P Series Single, Dual and Triple Output PSUs
Models from 6V/8A up to 60V/1.5A
Linear regulation - for the best performance
Ultra-compact design - uses up less space
True Analog controls - for ease of use
S-Lock function - instantly lock settings
V-Span function - customise the voltage range
Low current range and current meter averaging
DC output switches and 'view limits' button
Selectable remote sense terminals
Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual & triple models
High current low voltage output on triple output model
Note
Approvals
Supplied with
Aim-TTi Linear Regulated Laboratory Power Supply
Note:
RM460 rack mount kit 493-522 caters for up to 4 single output units, 2 dual output units, or any combination. The total height 4U includes ventilation spaces above and below, together with blanking panels for unused positions.
Inclusions:
User manual and mains lead.
Features and Benefits
High current low voltage output on triple output model
Independent, isolated tracking, ratio tracking and true parallel modes on dual and triple models
Linear regulation for the best performance
Low current range and current meter averaging
Remote control interfaces are Analog, RS-232, USB and LAN(LXI)
Selectable remote sense terminals
S-lock function for instantly locking settings
True analogue controls for ease of use
Ultra-compact design to take up less space
V-span function to customise the voltage range
Applications
QA verifications
R&D design verification
Certifications
EN61326 (EMC)
Supplied with
- Multi instrument control
- Logging to table and graph format
- Timed sequence control across all instruments and channels
- USB, LAN and RS232 compatible
| Part Number | PL303-P |
| Brand | Aim-TTi |
| Outputs | 1 |
| Regulation | Linear |
| Output Rating | 30V/3A |
| Interfaces | USB, RS232, LAN(LXI), analogue |
| Controls | Analogue, S-Lock, V-Span |
LAN Interface conforms with LXI standard
Interfaces are opto-isolated from outputs
IVI Driver supplied
Analog remote control of V and I
Front and rear terminals
Selectable remote sense terminals
High performance linear regulated power supplies
0 to 30V at 0 to 3A
Full digital remote control and readback
RS-232, USB and LAN (Ethernet), GPIB optional
