Mitutoyo 505-745 Dial Caliper 0 - 300 mm, Graduation 0.02 mm, 2 mm/rev
Part No. 505-745 | Range 0–300 mm | Graduation 0.02 mm | 2 mm/rev
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview

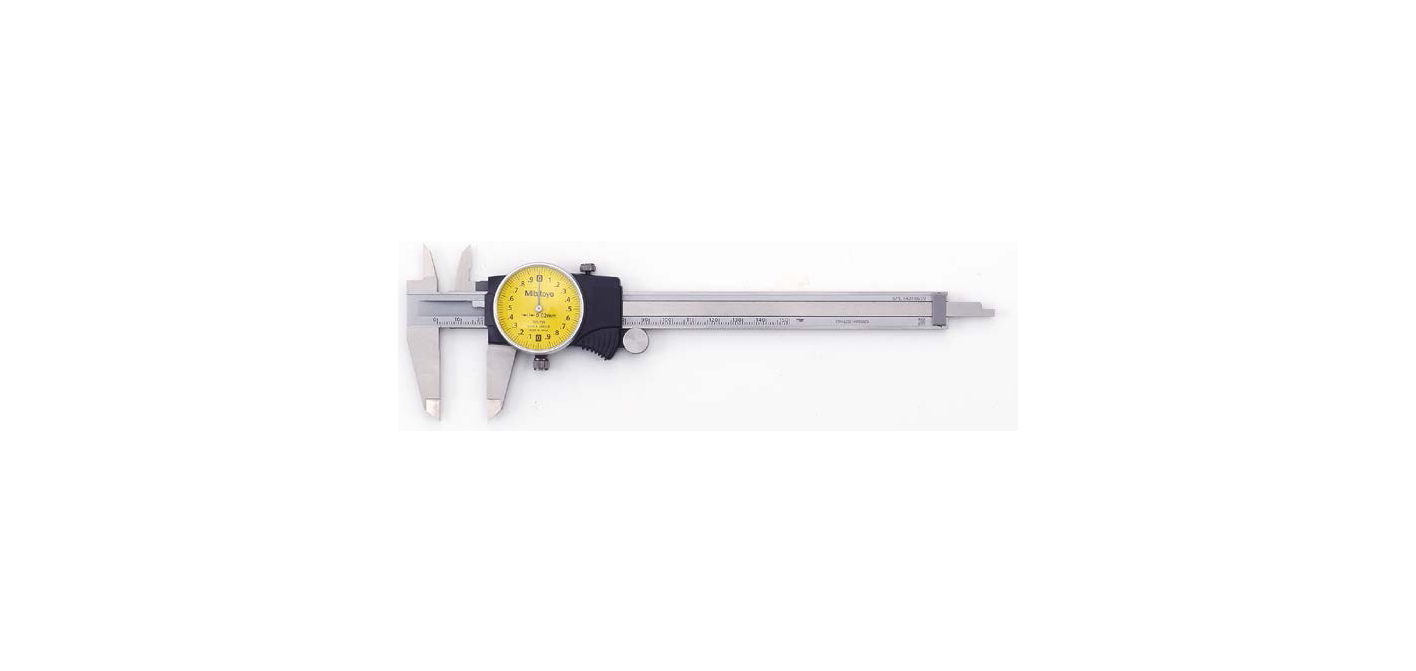

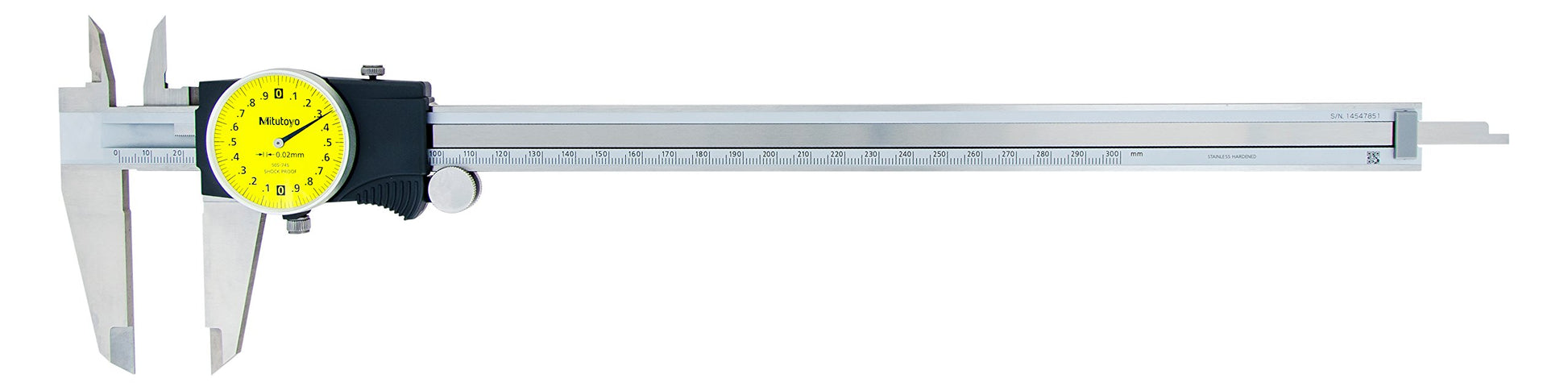

The Mitutoyo 505-745 dial caliper measures outside, inside, depth and step dimensions across a 0–300 mm range. Its easy-to-read analogue dial provides 0.02 mm graduation with 2 mm per revolution, giving clear dimensional readings without batteries or an electronic display.
Constructed from hardened stainless steel, the caliper features ultra-smooth sliding and strong shock protection for dependable daily workshop use. The bright yellow dial with large characters makes readings easy to see, while the standard outside and inside jaws, depth bar and step capability allow one instrument to handle a wide range of routine measurement tasks.
The Mitutoyo 505-745 is suitable for QC inspectors, calibration environments, fabrication and machining workshops, and maintenance teams supporting Kuwait's oil, gas and utilities sectors.
Temperature can affect dimensional measurements. Steel expands by approximately 11.5 μm per metre per °C. At 300 mm, a 10 °C temperature difference can change the measured length by approximately 34.5 μm. For close-tolerance work, allow the workpiece and caliper to reach the same temperature before taking the final measurement.
Key Benefits
-
Outside, inside, depth and step measurement in one tool
-
0–300 mm measuring range for larger everyday measurements
-
0.02 mm graduation for clear dimensional readings
-
2 mm per revolution dial configuration
-
Ultra-smooth sliding for controlled operation
-
Strong shock protection for demanding workshop use
-
Hardened stainless steel construction for durability
-
Bright yellow dial with large, easy-to-read characters
-
No batteries or electronic display required
-
Mitutoyo 505 series design for everyday dimensional inspection
Who This Product Is Best For
-
Machinists and fitters requiring a reliable everyday metric caliper
-
QC inspectors who prefer an analogue dial
-
Calibration and dimensional inspection environments
-
Oil and gas maintenance workshops
-
Fabrication and machining workshops
-
Power and utilities maintenance teams
-
Training centres and apprentices learning dimensional measurement
-
Buyers replacing digital calipers with a battery-free analogue instrument
How to Measure
-
Clean the jaws and measuring surfaces before use.
-
Close the jaws and check the dial zero.
-
Open the jaws and position them gently around the feature being measured.
-
Keep the caliper square and properly aligned with the workpiece.
-
Close the jaws gently without applying excessive measuring force.
-
Read the whole-unit value from the main beam scale and add the dial reading at 0.02 mm per graduation.
-
Use the depth bar or step surfaces when measuring depth or step dimensions.
-
Clean the instrument after use and store it safely.
Frequently Asked Questions
What range does the Mitutoyo 505-745 dial caliper measure?
It measures from 0 to 300 mm.
Can the 505-745 measure inside and depth dimensions?
Yes. It measures outside, inside, depth and step dimensions.
What is the graduation of the Mitutoyo 505-745?
The graduation is 0.02 mm.
What does 2 mm per revolution mean?
The dial completes one full revolution for 2 mm of movement, with individual graduations corresponding to 0.02 mm.
Why choose a dial caliper over a digital caliper?
The 505-745 uses an analogue dial and does not require batteries or an electronic display. This provides straightforward measurement for routine workshop applications.
How do I read the Mitutoyo 505-745 dial?
Read the whole-unit value from the main beam scale and then add the dial reading. Each dial graduation represents 0.02 mm.
Is the 505-745 suitable for larger metric measurements?
Yes. Its 0–300 mm range provides additional capacity for larger components compared with shorter-range metric calipers.
Which Mitutoyo model should I choose for measurements up to 200 mm?
The 505-745 provides a 0–300 mm range. For applications that fall within a shorter measurement range, the Mitutoyo 505-733 with a 0–200 mm range can be considered.
Can the Mitutoyo 505-745 be recalibrated?
Yes. Periodic calibration through an appropriate calibration service can verify measurement performance and maintain traceability where required.
How should I store and care for the 505-745?
Wipe the measuring faces clean after use, keep the instrument away from direct sunlight and coolant during storage, avoid dropping it, and check the zero regularly. Schedule periodic calibration according to your quality requirements.
How do I order the Mitutoyo 505-745 in Kuwait?
For pricing and availability, call or WhatsApp General Tech Services LLC at +965 9807 4888 with the model number and required quantity.
Request Pricing & Availability
Contact General Tech Services LLC for current pricing and availability of the Mitutoyo 505-745 dial caliper in Kuwait.
Call or WhatsApp +965 9807 4888 to request a quote.
