Mitutoyo 505-749 | Dial Caliper | Series 505 | Graduation 0.001 inch | Accuracy ±.002 inch | Range 0 to 12 inch
Part No. 505-749 | Range 0"–12" (0–304.8 mm) | Graduation 0.001"
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview

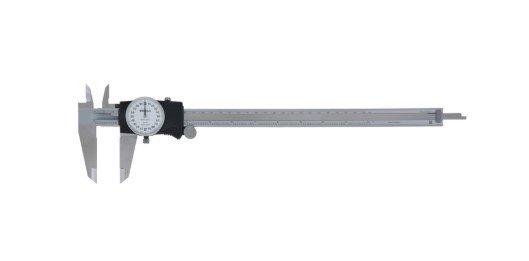

The Mitutoyo 505-749 dial caliper measures outside, inside, depth and step dimensions across a 0"–12" (0–304.8 mm) range. Its clear analogue dial provides a 0.001" graduation and ±0.002" accuracy without batteries or an electronic display.
Built from hardened stainless steel, the caliper features ultra-smooth sliding, shock protection and a bright yellow dial with large characters for easy reading. Its standard outside and inside jaws, depth bar and step measurement capability make it suitable for everyday dimensional inspection.
The Mitutoyo 505-749 is well suited to machinists, QC inspectors, calibration environments, fabrication workshops and maintenance teams supporting Kuwait's oil, gas and utilities sectors.
For close-tolerance measurements in hot workshop conditions, allow the workpiece to reach a stable temperature before measuring. At 304.8 mm, a 10 °C temperature difference can change the length of a steel part by approximately 35.1 μm.
Key Benefits
-
0.001" graduation for clear, precise analogue readings
-
±0.002" accuracy for routine dimensional inspection
-
Hardened stainless steel construction for durable workshop use
-
Ultra-smooth sliding mechanism for consistent operation
-
Shock protection for demanding daily applications
-
Bright yellow dial with large characters for easy reading
-
No batteries or electronic display to maintain
-
Outside, inside, depth and step measurement in one tool
-
0"–12" (0–304.8 mm) measuring range
-
Mitutoyo 505 series design for general workshop measurement
Who This Product Is Best For
-
Machinists and fitters needing a dependable everyday dial caliper
-
QC inspectors who prefer a clear analogue reading
-
Maintenance teams working in oil and gas facilities
-
Fabrication and machining workshops
-
Calibration and dimensional inspection environments
-
Training centres and apprentices learning precision measurement
-
Users replacing digital calipers where battery-free operation is preferred
How to Measure
-
Clean the jaws and measuring surfaces, then close the jaws and check the dial zero.
-
Open the jaws and position them gently around the feature being measured.
-
Keep the caliper square and properly aligned with the workpiece.
-
Close the jaws gently without excessive measuring force.
-
Read the whole-unit value from the beam scale and add the dial reading at 0.001" per graduation.
-
Use the depth bar or step surfaces when measuring depth or step dimensions.
-
Wipe the caliper clean after use and store it safely between jobs.
Frequently Asked Questions
What range does the Mitutoyo 505-749 dial caliper measure?
It measures from 0" to 12" (0–304.8 mm).
Can the Mitutoyo 505-749 measure inside and depth dimensions?
Yes. It provides outside, inside, depth and step measurement capabilities.
Why choose a dial caliper instead of a digital caliper?
The 505-749 uses an analogue dial and requires no batteries or electronic display. This makes it convenient for routine workshop measurement where battery-free operation is preferred.
How do I read the Mitutoyo 505-749 dial?
Read the whole-unit measurement from the main beam scale, then add the dial reading. Each dial graduation represents 0.001".
What is the accuracy of the 505-749?
The stated accuracy is ±0.002".
What is the difference between the Mitutoyo 505-749 and other 12" calipers?

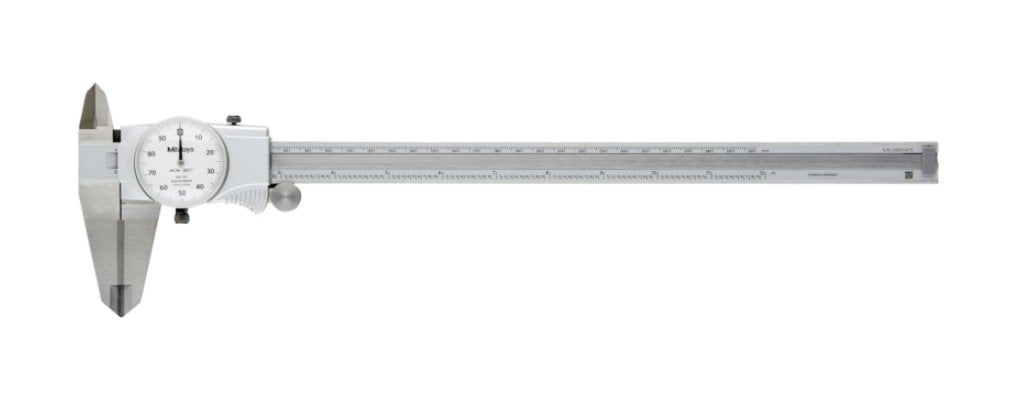

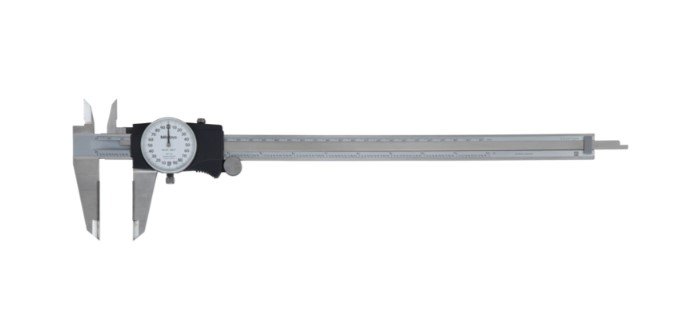

The 505-749 is a 0"–12" dial caliper. When comparing other 12" models such as the 505-748 or 505-750, check the jaw configuration and other model-specific specifications to select the appropriate instrument for your application.
Can the Mitutoyo 505-749 be recalibrated?
Yes. Periodic calibration through an appropriate calibration service can help maintain measurement traceability and verify instrument performance.
How should I store and care for the 505-749?
Clean the measuring faces after use, keep the caliper away from direct sunlight and coolant when stored, avoid impacts or dropping, and check the dial zero regularly. Periodic calibration is recommended where measurement traceability is required.
How do I order the Mitutoyo 505-749 in Kuwait?
For pricing and availability, call or WhatsApp General Tech Services LLC at +965 9807 4888 with the model number and required quantity.
Request Pricing & Availability
For the Mitutoyo 505-749 dial caliper, contact General Tech Services LLC for current Kuwait pricing and availability.
Call or WhatsApp +965 9807 4888 to request a quote.
