Mitutoyo 511-846, Micrometer Head Bore Gauge, Range 10.0 - 16.0", Graduation .0005"
Part No. 511-846 | Mitutoyo Series 511
Product Description

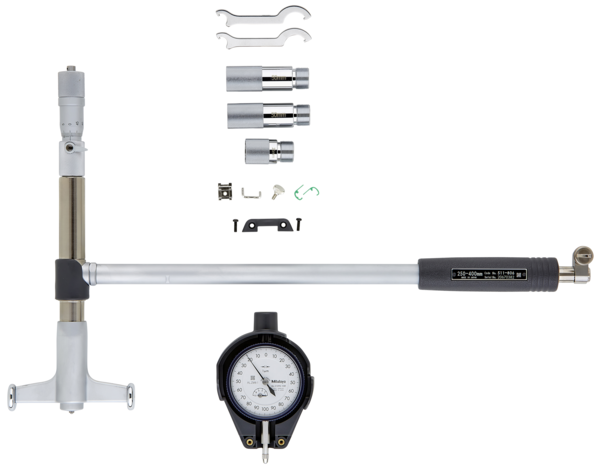

The Mitutoyo 511-846 is a large-bore micrometer head bore gauge designed for measuring internal diameters from 10–16" (254–406.4 mm). Its built-in micrometer head provides 1" of adjustment, allowing the measuring size to be set conveniently without relying solely on repeated anvil and spacer combinations.
The 511-846 includes a 0.0005" graduation dial indicator and provides a stated wide-range accuracy of 0.00008" (2 µm), with 0.5 µm repeatability and 1 µm adjacent error. The carbide ball contact point is suited to repeated dimensional inspection, while the supplied sub-anvils extend the gauge's measurement capability for different bore sizes.
As a comparator-type instrument, the gauge should be zeroed against a suitable reference before measurement. A setting ring or an outside micrometer set to the nominal dimension can be used. After inserting the gauge into the bore, gently rocking it helps locate the minimum dial reading and establish the bore diameter.
The 511-846 is suitable for large internal features found in engine blocks, compressor and pump casings, gearbox housings, hydraulic equipment and other heavy-engineering components.
For larger bore applications, the Mitutoyo 511-847 covers 16–24".
Key Benefits
-
10–16" (254–406.4 mm) measuring range for large internal bores.
-
Built-in 1" micrometer head for convenient size adjustment.
-
0.0005" graduation dial indicator included.
-
0.00008" (2 µm) wide-range accuracy.
-
0.5 µm repeatability and 1 µm adjacent error.
-
Supplied 1", 2" and 2" sub-anvils for extended measurement applications.
-
Carbide ball contact point supports repeated inspection.
-
Protective dial cover helps shield the indicator during handling.
-
Supplied in a fitted case for storage and transport.
Who This Product Is Best For
The 511-846 is suited to heavy engineering workshops, engine and compressor overhaul teams, large-part machining operations, pump and gearbox maintenance departments and quality-control laboratories. It is useful for first-off inspection, in-process dimensional checks and maintenance applications involving large internal bores from 10–16".
How to Use
-
Select the appropriate anvil or sub-anvil arrangement for the nominal bore size.
-
Adjust the built-in micrometer head to the required measuring dimension.
-
Zero the gauge against a suitable setting ring or an outside micrometer set to the nominal dimension.
-
Insert the gauge carefully into the bore.
-
Gently rock the gauge to locate the minimum dial reading.
-
Compare the reading with the nominal reference dimension.
-
Repeat measurements at different depths and angular positions to check for taper or ovality.
Frequently Asked Questions
What is the Mitutoyo 511-846 used for?
The 511-846 is used to measure large internal bore diameters from 10–16" (254–406.4 mm), particularly in machining, overhaul, maintenance and dimensional inspection applications.
What is the measuring range of the 511-846?
The measuring range is 10–16" (254–406.4 mm).
How accurate is the Mitutoyo 511-846?
The stated wide-range accuracy is 0.00008" (2 µm), with 0.5 µm repeatability and 1 µm adjacent error.
What is the dial indicator graduation?
The included dial indicator has a 0.0005" graduation.
What is the micrometer head travel?
The built-in micrometer head provides 1" of travel for adjusting the measuring size.
What sub-anvils are supplied with the 511-846?
The supplied sub-anvils are 1", 2" and 2".
Do I need a setting ring to use the 511-846?
The bore gauge is a comparator and should be zeroed against a known reference before measurement. A suitable setting ring or an outside micrometer can be used for this purpose.
What is the difference between the 511-846 and 511-847?
The 511-846 covers 10–16", while the 511-847 covers 16–24". Select the model according to the internal bore range that needs to be measured.
