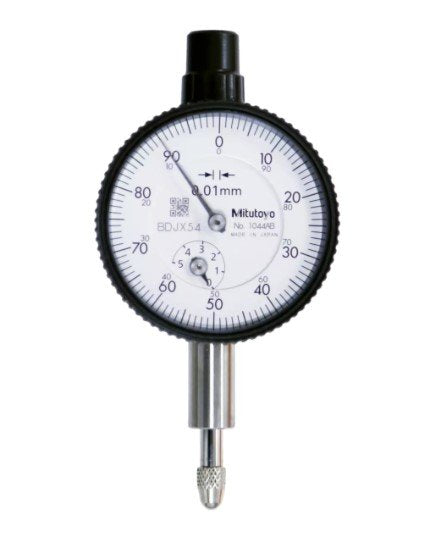

Mitutoyo 1044AB-01 | Dial Gauge | Flat Back | ANSI/AGD Type | Graduation 0.01 mm | Range 5 mm
Part No. 1044AB-01 | Range 5 mm | Graduation 0.01 mm
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview
The Mitutoyo 1044AB-01 is an ANSI/AGD-type dial gauge with a flat back, 0.01 mm graduation and 5 mm measuring range. It is designed for routine comparative inspection, runout checks and setup work where clear readings and practical measuring travel are required.
The plunger-type gauge follows American Gage Design dimensions, making it suitable for compatible stands, fixtures and holders commonly used in inspection rooms and machine shops. Its 0.01 mm graduation provides practical resolution across the 5 mm travel for general shop-floor measurement tasks.
The flat back provides a clean, low-profile rear profile for stem-mounted setups using suitable stands, magnetic bases or custom fixtures. Its mechanical movement is designed for dependable day-to-day inspection use.
Request a quote in under a minute — call +965 9807 4888.
Key Benefits
-
0.01 mm graduation for clear, practical comparative readings
-
5 mm measuring range for routine inspection and setup work
-
ANSI/AGD design for compatibility with common mounting equipment
-
Flat back for stem-mounted inspection setups
-
Mechanical movement for dependable workshop use
-
Genuine Mitutoyo product supplied and supported locally in Kuwait
Who This Product Is Best For
-
Machinists and inspectors performing routine comparative checks and machine setups
-
Toolrooms and machine shops checking workpieces, fixtures and machine alignment
-
Maintenance teams replacing an existing ANSI/AGD flat back dial gauge
-
Calibration and inspection teams standardising equipment on Mitutoyo gauges
How to Use It
-
Mount the gauge securely by its stem in a rigid stand, magnetic base or suitable fixture, with the plunger aligned correctly with the measurement surface.
-
Apply a small amount of preload and rotate the bezel to establish the zero position against a reference surface or master.
-
Move the workpiece or gauge across the feature being inspected and observe the pointer movement to determine the deviation.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected from damage.
Frequently Asked Questions
What is the Mitutoyo 1044AB-01 used for?
The 1044AB-01 is designed for routine comparative checks, runout inspection and setup work on the shop floor. Its 0.01 mm graduation and 5 mm range provide practical resolution for general inspection tasks.
What are the graduation and range of the 1044AB-01?
The gauge has a 0.01 mm graduation and a 5 mm measuring range.
What does ANSI/AGD mean on a dial gauge?
ANSI/AGD refers to American Gage Design dimensions used for dial indicators. This standardisation helps ensure compatibility with suitable stands, holders and mounting accessories.
What is the benefit of the flat back design?
The flat back provides a clean, compact rear profile and is suitable for stem-mounted inspection arrangements using compatible stands, magnetic bases or fixtures.
What is the difference between the 1044AB-01 and 1044A-01?
Both versions have a 0.01 mm graduation and 5 mm range. The 1044AB-01 has a flat back, while the 1044A-01 is the lug back version. Contact +965 9807 4888 to confirm which configuration matches your mounting setup.
Is the Mitutoyo 1044AB-01 available in Kuwait?
Contact General Tech Services LLC at +965 9807 4888 for current pricing, lead time and availability in Kuwait.
For pricing and availability, contact General Tech Services LLC at +965 9807 4888.
