Part Number : 2046A-11

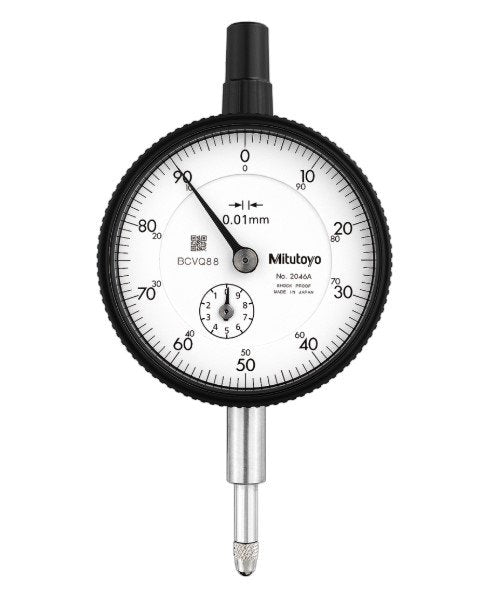

The Mitutoyo 2046A-11 is a precision-engineered dial gauge designed for accurate linear measurements across a 10 mm range. With a fine 0.01 mm graduation, it delivers high-resolution readings ideal for inspection and alignment tasks. Its flat back design allows secure mounting on flat surfaces or magnetic bases, ensuring stable use in any setup. Built to ANSI/AGD Type 2 standards, it guarantees measurement consistency and cross-tool compatibility. The dial gauge features jeweled bearings for smooth, low-friction operation and improved longevity. A scratch-resistant, anti-glare crystal and carbide-tipped contact point add durability for demanding environments.

Availability: Sold out

Free Kuwait shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Carbide tipped
Dial Reading	+/-0-100
Graduation	0.01 mm
Hysteresis	3 µm
Inch-Metric	Metric
Measuring Force	0.4 - 1.4 N
Range	10 mm
Repeatability	+/-3 µm
Stem Dia	9.52 mm Or 0.375 Inch
Thread type	4-48UNF
Type	ANSI/AGD Standard
Type	Dial Gauge

10 mm Measuring Range – Suitable for a wide variety of precision measurement tasks.
0.01 mm Graduation – Offers fine resolution for detailed and accurate readings.
Flat Back Design – Enables stable mounting on flat surfaces or magnetic bases.
ANSI/AGD Type 2 Compliance – Built to industry standards for compatibility and reliability.
Jeweled Bearings – Ensures smooth, low-friction movement and extended operational life.
Durable Construction – Includes a scratch-resistant, anti-glare crystal and carbide-tipped contact point.
High Repeatability – Delivers consistent, repeatable results in demanding measurement applications.
