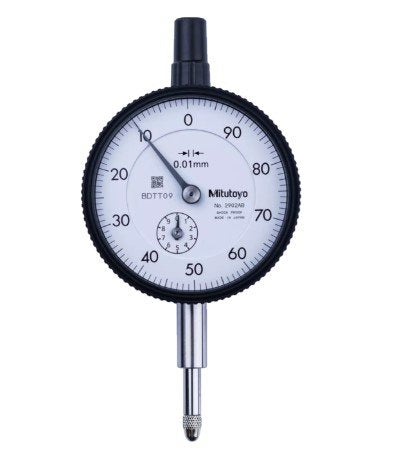

Mitutoyo 2902A-01 | Dial Gauge | Lug Back | ANSI/AGD Type | Graduation 0.01 mm | Range 10 mm
Part No. 2902A-01 | Range 10 mm | Graduation 0.01 mm
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview
The Mitutoyo 2902A-01 is an ANSI/AGD-type dial gauge with a lug back, 0.01 mm graduation and 10 mm measuring range. It is designed for everyday runout, flatness, parallelism, step-height and alignment checks in machine-shop and inspection applications.
The ANSI/AGD design follows American Gage Design dimensions, making the gauge suitable for use with common stands, holders and fixtures. The lug back provides a dedicated rear mounting point for securing the gauge to a bracket or fixture where stem clamping alone is not practical. Its mechanical plunger movement supports routine workshop inspection.
For stem mounting with a flat back, see the Mitutoyo 2902AB-01.
Key Benefits
-
0.01 mm graduation for clear, practical readings
-
10 mm measuring range for routine comparative inspection
-
ANSI/AGD standard design for compatibility with common inspection setups
-
Lug back for secure mounting to brackets and fixtures
-
Robust mechanical movement for dependable workshop use
-
Genuine Mitutoyo supply with local Kuwait support
Who This Product Is Best For
-
Machinists checking runout, parallelism, step heights and alignment
-
Toolrooms and machine shops setting up workpieces and fixtures
-
Maintenance teams replacing an existing ANSI/AGD lug back dial gauge
-
Inspection and calibration teams standardising equipment on Mitutoyo
How to Use It
-
Mount the gauge securely using its lug back or stem in a rigid stand, magnetic base or suitable fixture.
-
Position the plunger square to the surface being inspected.
-
Apply a small amount of preload and set the dial to zero against a reference surface or master.
-
Move the workpiece or gauge across the feature and read the deviation directly from the dial.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2902A-01 used for?
It is suitable for measuring runout, flatness, parallelism, step heights and alignment. Its 0.01 mm graduation and 10 mm range make it suitable for general shop-floor inspection.
What are the graduation and range of the 2902A-01?
The Mitutoyo 2902A-01 has a 0.01 mm graduation and a 10 mm measuring range.
What does ANSI/AGD mean on a dial gauge?
ANSI/AGD refers to the American Gage Design standard for dial indicators. Gauges built to this design use standardised dimensions for compatibility with common stands, holders and accessories.
What is the benefit of a lug back?
A lug back provides a dedicated mounting point, allowing the gauge to be secured directly to a bracket or fixture.
What is the difference between the 2902A-01 and 2902AB-01?
Both have a 0.01 mm graduation and 10 mm measuring range. The 2902A-01 has a lug back for bracket or fixture mounting, while the 2902AB-01 has a flat back for stem-mounted applications.
Is the genuine Mitutoyo 2902A-01 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Contact +965 9807 4888 for current pricing, lead time and availability.
