Mitutoyo 2909SB-62 | Dial Indicator | Flat Back | AGD/ANSI | Series 2 | One Revolution Type | Graduation 0.0005 inch | Range 0.04 inch
Part No. 2909SB-62 | Range 0.04 inch | Graduation 0.0005 inch
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview

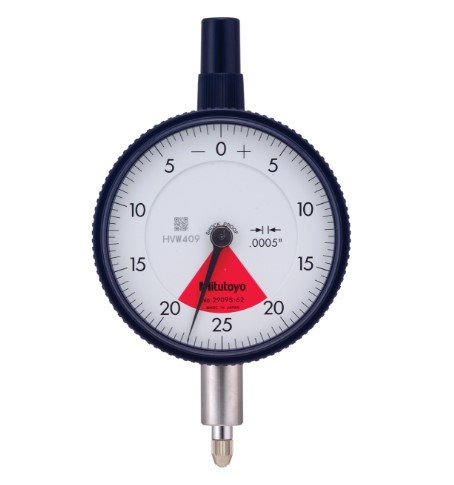

The Mitutoyo 2909SB-62 is an ANSI/AGD-type Series 2 dial gauge with a flat back, one-revolution dial, 0.0005 inch graduation and a 0.04 inch measuring range. It is designed for high-resolution comparative inspection where small deviations need to be identified clearly.
The plunger-type gauge follows American Gage Design dimensions, making it suitable for compatible ANSI/AGD inspection stands, fixtures and holders. Its 0.0005 inch graduation over 0.04 inch of travel provides fine comparative readings for precision-ground parts, gauge setting and component-to-master comparison.
The flat back provides a clean, low-profile rear surface for stem mounting in a suitable magnetic base, comparator stand or custom fixture. The one-revolution dial displays the complete 0.04 inch range in a single pointer turn, simplifying readings during inspection. Its mechanical movement is suited to routine workshop measurement.
For a lug back version with the same 0.0005 inch graduation and 0.04 inch range, see the Mitutoyo 2909A-62.
Key Benefits
■ 0.0005 inch graduation for fine comparative readings
■ 0.04 inch measuring range for precision inspection
■ ANSI/AGD-type Series 2 design for compatible inspection setups
■ Flat back for a clean profile when mounting by the stem
■ One-revolution dial displays the complete range in a single pointer turn
■ Mechanical movement for routine workshop use
■ Genuine Mitutoyo product supplied locally in Kuwait
Who This Product Is Best For
■ Quality-control inspectors performing high-resolution comparative measurement
■ Toolrooms and machine shops checking precision-ground parts and setting gauges
■ Maintenance teams replacing an existing ANSI/AGD flat back dial gauge
■ Calibration and inspection teams standardising equipment on Mitutoyo
How to Use It
-
Mount the gauge by its stem in a rigid stand, magnetic base or suitable fixture, keeping the plunger square to the measurement surface.
-
Apply a small amount of preload and rotate the bezel to set the reference reading to zero.
-
Move the workpiece or gauge across the feature being inspected and read the pointer deviation directly from the dial.
-
Retract the plunger gently after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2909SB-62 dial gauge used for?
The 2909SB-62 is designed for high-resolution comparative inspection where small deviations need to be identified. Its 0.0005 inch graduation and 0.04 inch range suit fine-tolerance inspection and comparison work.
What are the graduation and range of the 2909SB-62?
The Mitutoyo 2909SB-62 has a 0.0005 inch graduation and a 0.04 inch measuring range.
What does ANSI/AGD mean on a dial gauge?
ANSI/AGD refers to American Gage Design dimensions used for dial indicators. Compatibility should still be confirmed with the specific stand, holder or fixture used in your inspection setup.
What is the benefit of a flat back?
The flat back provides a clean, compact rear profile that suits stem mounting in compatible stands, magnetic bases and fixtures.
What does a one-revolution dial mean?
The pointer covers the complete 0.04 inch measuring range in a single revolution. This simplifies reading because the full range is displayed without needing to count multiple pointer revolutions.
Should I choose the flat back 2909SB-62 or the lug back 2909A-62?
Both are listed with a 0.0005 inch graduation and 0.04 inch range. The 2909SB-62 has a flat back for stem mounting, while the 2909A-62 has a lug back for suitable bracket or fixture mounting.
Is the genuine Mitutoyo 2909SB-62 available in Kuwait?
Contact General Tech Services LLC at +965 9807 4888 for current pricing, lead time and availability in Kuwait.
Request Pricing & Availability
For genuine Mitutoyo 2909SB-62 dial gauges in Kuwait, contact General Tech Services LLC at +965 9807 4888 for pricing, availability and ordering assistance.
