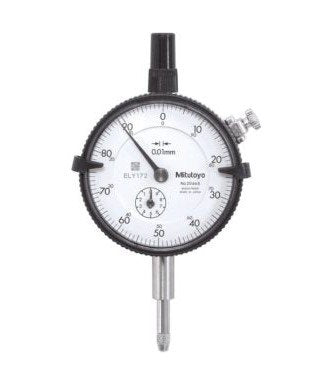

Mitutoyo 2046AB | Dial Gauge | Flat Back | ISO Type | Series 2 | Graduation 0.01mm | Accuracy +/- 0.013mm | Range 10mm
The Mitutoyo 2046AB Dial Gauge (Series 2) is a high-precision measuring instrument designed for accurate measurements. It features a graduation of 0.01mm and an accuracy of ±0.013mm, ensuring reliable and precise readings. With a range of 10mm, it is suitable for various inspection and measurement tasks. The flat-back design makes it easy to mount and use in different setups. Compliant with ISO standards, it guarantees high quality and precision. This dial gauge is ideal for use in manufacturing, quality control, and precision engineering.

Free UAE shipping available
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Contact point | Carbide tipped |
Dial Reading | +/-0 to 100 |
Graduation | 0.01 mm |
Hysteresis | 3 µm |
Inch-Metric | Metric |
Measurement range | 13 µm |
Measuring Force | 0.4 - 1.4 N |
Range | 10 mm |
Repeatability | 3 µm |
Series | 2 |
Stem Dia | 8 mm |
Thread type | M 2.5 x 0.45 mm |
Type | Dial Gauge |
Weight | 135 g |
- Graduation: 0.01mm for precise and detailed measurements.
- Accuracy: ±0.013mm for reliable and consistent results.
- Range: 10mm, suitable for a variety of measurement and inspection tasks.
- Flat Back Design: Allows for easy mounting in various setups.
- ISO Type: Compliant with ISO standards for high precision and quality.
- Series 2: Known for its durability and accuracy in industrial applications.
