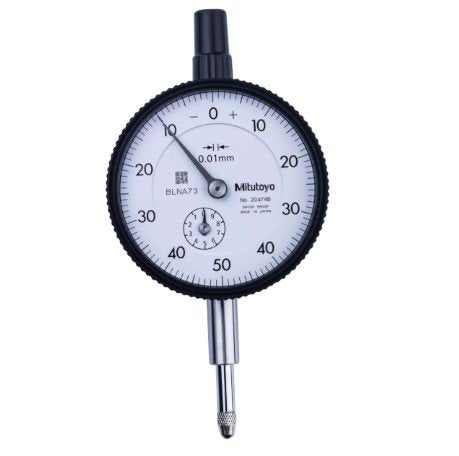

Mitutoyo 2047AB-11 | Dial Gauge | Flat Back | ANSI/AGD Type | Jewelled Bearing | Graduation 0.01 mm | Range 10 mm
Part No. 2047AB-11 | Range 10 mm | Graduation 0.01 mm
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview
The Mitutoyo 2047AB-11 is an ANSI/AGD-type dial gauge with a flat back, 0.01 mm graduation, 10 mm measuring range and jewelled bearing. It is designed for everyday runout, flatness, parallelism, step-height and alignment checks where smooth, sensitive mechanical movement is required.
The ANSI/AGD design follows American Gage Design dimensions, making the gauge suitable for use with common stands, holders and fixtures. The flat back provides a clean rear profile for stem-mounted applications, while the jewelled bearing supports smooth, low-friction pointer movement.
For the same 10 mm range in the -01 version, see the Mitutoyo 2047AB-01.
Key Benefits
-
0.01 mm graduation for clear, practical readings
-
10 mm measuring range for routine comparative inspection
-
ANSI/AGD standard design for compatibility with common inspection setups
-
Flat back for stem-mounted applications
-
Jewelled bearing for smooth, low-friction movement
-
Genuine Mitutoyo supply with local Kuwait support
Who This Product Is Best For
-
Machinists checking runout, parallelism, step heights and alignment
-
Toolrooms and machine shops setting up workpieces and fixtures
-
Maintenance teams replacing an existing ANSI/AGD flat back dial gauge
-
Inspection and calibration teams standardising equipment on Mitutoyo
How to Use It
-
Mount the gauge securely by its stem in a rigid stand, magnetic base or suitable fixture.
-
Position the plunger square to the surface being inspected.
-
Apply a small amount of preload and set the dial to zero against a reference surface or master.
-
Move the workpiece or gauge across the feature and read the deviation directly from the dial.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 2047AB-11 used for?
It is suitable for measuring runout, flatness, parallelism, step heights and alignment. Its 0.01 mm graduation and 10 mm range make it suitable for general shop-floor inspection.
What are the graduation and range of the 2047AB-11?
The Mitutoyo 2047AB-11 has a 0.01 mm graduation and a 10 mm measuring range.
What does ANSI/AGD mean on a dial gauge?
ANSI/AGD refers to the American Gage Design standard for dial indicators. Gauges built to this design use standardised dimensions for compatibility with common stands, holders and accessories.
What is the benefit of a flat back?
The flat back provides a clean, compact rear profile and suits applications where the gauge is mounted by its stem in a stand, magnetic base or fixture.
What is the benefit of the jewelled bearing?
The jewelled bearing supports smooth, low-friction movement of the gauge mechanism, helping provide sensitive pointer movement during comparative measurements.
What is the difference between the 2047AB-11 and 2047AB-01?
Both are listed with a 0.01 mm graduation and 10 mm measuring range. Contact +965 9807 4888 to confirm the exact configuration required for your application or replacement gauge.
Is the genuine Mitutoyo 2047AB-11 available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Contact +965 9807 4888 for current pricing, lead time and availability.
Request Pricing & Availability
For the Mitutoyo 2047AB-11, contact General Tech Services LLC, Kuwait at +965 9807 4888 for pricing, stock availability and ordering assistance.
