Part Number : 2356AB-10

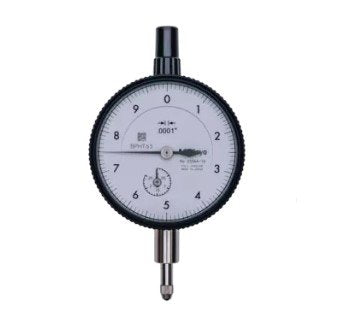

The Mitutoyo 2356AB-10 is a high-precision dial indicator designed for accurate measurements in various industrial applications. It features a flat back design, allowing for secure mounting and stable readings. With a measuring range of 0.25 inches and graduations of 0.0001 inches, it offers fine resolution for precise measurements. The gauge is equipped with a jeweled bearing, ensuring smooth operation and durability. Compliant with ANSI/AGD standards, it guarantees reliability and accuracy. As part of Mitutoyo’s Series 2, it reflects the brand’s commitment to quality and performance.

Availability: Sold out

Free Kuwait shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Carbide tipped
Dial Reading	0.0-10.0
Graduation	0.0001 Inch
Hysteresis	0.0001 Inch
Inch-Metric	Inch
Measuring Force	0.4 - 2 N
Range	0.25 Inch
Repeatability	+/-0.00003 Inch
Series	2
Stem Dia	9.52 mm Or 0.375 Inch
Thread type	4.0-48.0UNF
Type	ANSI/AGD Standard
Type	Dial Gauge
Weight	138 g

Flat Back Design – Enables secure attachment to stands and holders.
Graduation of 0.0001 inches – Provides precise and easy-to-read measurements.
0.25-inch Measuring Range – Ideal for general-purpose dimensional checks.
Jeweled Bearing – Ensures smooth, reliable movement and extended life.
ANSI/AGD Compliance – Meets American standards for dial indicators.
Series 2 Model – Trusted for durability, accuracy, and industrial-grade performance.
