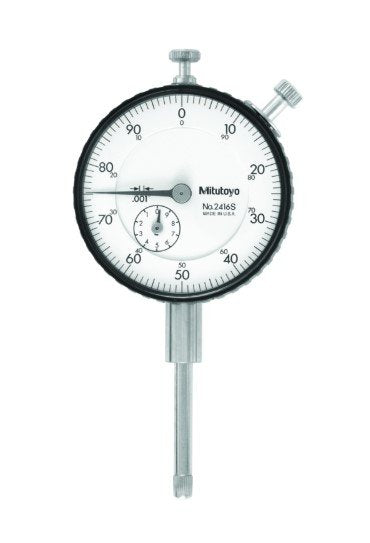

Mitutoyo 2416A | Dial Indicator | Accuracy ± 0.001 Inch | Resolution 0.001 | Range 1 Inch
The Mitutoyo 2416A Dial Indicator is a high-precision tool designed for accurate measurement of small linear displacements. It offers an accuracy of ±0.001 inch and a resolution of 0.001 inch for precise readings. With a range of 1 inch, it is ideal for checking small variations in the position of mechanical parts. The dial indicator is durable and reliable, making it suitable for quality control and machining applications. Its clear dial face ensures easy reading of measurements. The Mitutoyo 2416A is an essential tool for achieving high-precision measurements in various industries.

Free UAE shipping available
- Specifications
- Features
- Downloads
Contact point | Carbide tipped |
Dial Reading | +/-0 to 100 |
Digital/Analog | Analog |
Graduation | 0.001 Inch |
Hysteresis | 0.0002 Inch |
Inch-Metric | Inch |
Max. permissible error | First 2 1/2 revolutions : +/-0.001 |
Max. permissible error | First One Revolution : +/-0.001 |
Measuring Force | 0.4 to 1.8 N |
Range | 1 Inch |
Repeatability | +/-0.0002 Inch |
Stem Dia | 9.52 mm or 0.375 Inch |
Thread type | 4-48UNF |
Type | Dial Indicator |
Weight | 164 g |
- High Accuracy: Provides ±0.001 inch accuracy for precise measurement of small linear displacements.
- Fine Resolution: It offers a resolution of 0.001 inch, ensuring detailed and exact readings.
- 1-Inch Measuring Range: Has a 1-inch range, making it suitable for measuring small variations in mechanical parts.
- Clear Dial Face: Features an easy-to-read dial, enhancing visibility and measurement accuracy.
- Durable Construction: Built with high-quality materials for long-lasting reliability in industrial and mechanical settings.
- Versatile Applications: Ideal for use in quality control, machine setup, and precise measurement tasks across various industries.
