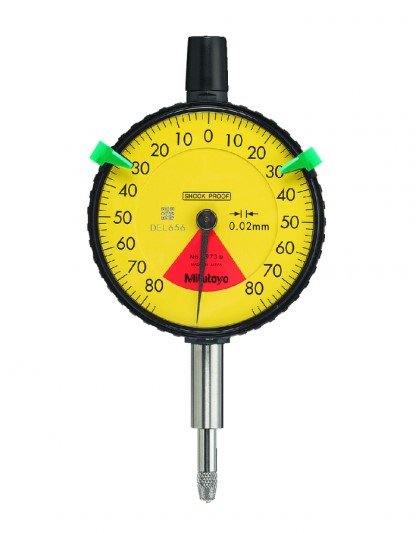

Mitutoyo 2973TB | Dial Indicator | Flat Back | Series 2 | One Revolution | Graduation 0.02 mm | Range 1.6 mm
Part No. 2973TB | Range 1.6 mm | Graduation 0.02 mm
Product Overview
The Mitutoyo 2973TB is a Series 2 dial gauge with a flat back design, one-revolution dial, 0.02 mm graduation, and 1.6 mm measuring range. It is designed for routine comparative checks, runout inspection, and setup work on the shop floor.
With 0.02 mm graduation over 1.6 mm of travel, the gauge provides practical resolution for general inspection applications where a compact measuring range is suitable. Its flat back provides a clean, low-profile rear profile for applications where the gauge is mounted by its stem in a magnetic base, comparator stand, or custom fixture.
The one-revolution dial displays the full 1.6 mm range within a single pointer revolution, simplifying readings during repetitive inspection work and avoiding the need to count multiple pointer revolutions. Its mechanical movement is suited to regular day-to-day workshop use.
For a different resolution and travel combination, the Mitutoyo 2972TB is listed with 0.01 mm graduation over a 1 mm range.
Key Benefits
-
0.02 mm graduation for clear, practical readings
-
1.6 mm measuring range for routine comparative inspection and setup
-
Series 2 dial gauge design for general shop-floor measurement
-
Flat back for a clean rear profile when mounting by the stem
-
One-revolution dial displays the complete range in a single turn
-
Mechanical movement for regular workshop use
-
Suitable for comparative checks, runout inspection, and setup applications
Who This Product Is Best For
-
Machinists and inspectors performing routine comparative checks and setup work
-
Toolrooms and machine shops checking workpieces, fixtures, and machine alignment
-
Maintenance teams replacing an existing flat back dial gauge
-
Buyers standardizing inspection equipment with genuine Mitutoyo instruments
How to Use It
-
Mount the gauge securely by its stem in a rigid stand, magnetic base, or suitable fixture, keeping the plunger aligned with the surface being measured.
-
Pre-load the plunger slightly and set the dial to zero against a reference surface or master.
-
Move the workpiece or gauge across the feature and read the deviation directly from the dial.
-
Retract the plunger gently after measurement and store the gauge clean, dry, and protected.
Frequently Asked Questions
What is the Mitutoyo 2973TB dial gauge used for?
The Mitutoyo 2973TB is intended for routine comparative checks, runout inspection, and setup work. Its 0.02 mm graduation and 1.6 mm range are suited to general shop-floor inspection tasks.
What are the graduation and range of the 2973TB?
The Mitutoyo 2973TB has a 0.02 mm graduation and a 1.6 mm measuring range.
What series is the Mitutoyo 2973TB?
It is a Mitutoyo Series 2 dial gauge.
What is the benefit of a flat back?
The flat back provides a clean, low-profile rear design and is suitable for applications where the gauge is mounted by its stem in a stand, magnetic base, or fixture.
What does a one-revolution dial mean?
The pointer covers the gauge's full 1.6 mm range in a single revolution, allowing the complete measuring range to be read without counting multiple pointer revolutions.
Which should I choose: the 2973TB or the 2972TB?
The models provide different resolution and travel combinations. The 2973TB has a 0.02 mm graduation and 1.6 mm range, while the 2972TB is listed with a 0.01 mm graduation and 1 mm range. Select the configuration that matches your measurement requirements.
Is the genuine Mitutoyo 2973TB available in Kuwait?
General Tech Services LLC supplies genuine Mitutoyo products in Kuwait. Contact +965 9807 4888 for current pricing, lead time, and stock availability.
For pricing and current availability of the Mitutoyo 2973TB, contact General Tech Services LLC, Genuine Mitutoyo Supplier, Kuwait, at +965 9807 4888.
