Mitutoyo 3109AB-10 | Dial Gauge | Flat Back | ISO Type | Series 3 | Jewelled Bearing | Graduation 0.001 mm | Range 1 mm
Part No. 3109AB-10 | Range 1 mm | Graduation 0.001 mm
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview

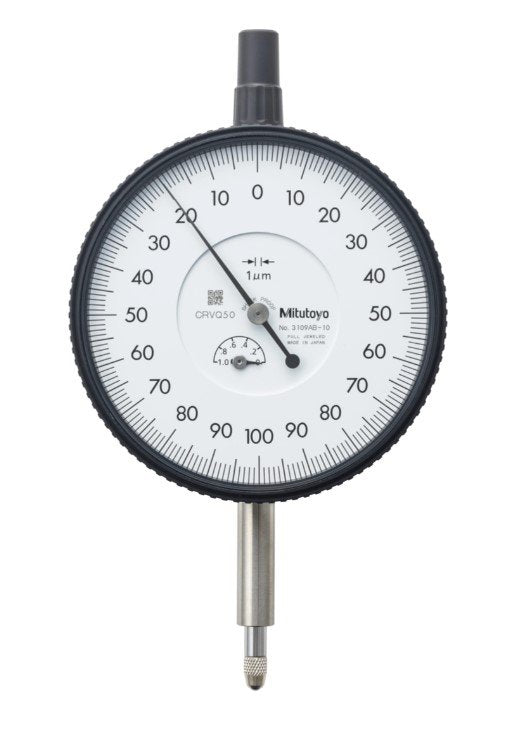

The Mitutoyo 3109AB-10 is an ISO-type Series 3 dial gauge with a flat back design, 0.001 mm graduation, 1 mm measuring range and jewelled bearings. It is designed for high-resolution comparative inspection where very small deviations need to be identified accurately.
The plunger-type gauge follows an ISO-type design, so compatible stands, holders and fixtures should be confirmed before installation. Its 0.001 mm graduation provides fine resolution over the 1 mm measuring range, making it suitable for precision comparative checks, gauge setting and inspection of components against a reference or master.
The flat back provides a clean rear profile for stem-mounted applications using suitable magnetic bases, comparator stands or fixtures. Jewelled bearings support smooth, low-friction pointer movement during measurement.
Key Benefits
-
0.001 mm graduation for fine, high-resolution readings
-
1 mm measuring range for precision comparative inspection
-
ISO-type design for compatible inspection setups
-
Flat back for stem mounting in suitable stands, bases and fixtures
-
Jewelled bearings for smooth, low-friction movement
-
Genuine Mitutoyo part supplied by General Tech Services LLC in Kuwait
Who This Product Is Best For
-
Quality-control inspectors performing high-resolution comparative measurement
-
Toolrooms and machine shops checking precision-ground components and setups
-
Maintenance teams replacing an existing ISO-type flat back dial gauge
-
Calibration and inspection teams standardising equipment on Mitutoyo gauges
How to Use It
-
Mount the gauge securely by its stem in a compatible rigid stand, magnetic base or fixture, with the plunger correctly aligned to the measuring surface.
-
Pre-load the plunger slightly against a reference surface or master and rotate the bezel to establish the required zero position.
-
Move the workpiece or gauge across the feature being inspected and read the deviation directly from the dial.
-
Keep the plunger movement within the 1 mm measuring range and avoid excessive measuring force.
-
Retract the plunger gently after use and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 3109AB-10 dial gauge used for?
The Mitutoyo 3109AB-10 is designed for high-resolution comparative inspection where very small deviations need to be detected. Its 0.001 mm graduation and 1 mm measuring range suit fine-tolerance measurement tasks.
What are the graduation and range of the 3109AB-10?
The Mitutoyo 3109AB-10 has a 0.001 mm graduation and a 1 mm measuring range.
What does ISO-type mean on this dial gauge?
ISO-type indicates that the gauge follows an ISO-type design rather than an ANSI/AGD pattern. Check that your existing stands, holders and fixtures are compatible with this design before installation.
What is the benefit of a flat back?
The flat back provides a clean, compact rear profile for applications where the gauge is mounted by its stem in a suitable stand, magnetic base or fixture.
What is the benefit of jewelled bearings?
Jewelled bearings help reduce internal friction, supporting smooth and sensitive pointer movement during comparative measurement.
What is the difference between the flat back 3109AB-10 and the lug back 3109A-10?
Both models are listed with a 0.001 mm graduation and a 1 mm measuring range. The 3109AB-10 has a flat back, while the 3109A-10 is the lug back version. Select the configuration that matches your mounting arrangement.
Is the genuine Mitutoyo 3109AB-10 available in Kuwait?
Contact General Tech Services LLC at +965 9807 4888 for current pricing, lead time and availability in Kuwait.
Request Pricing & Availability
For the genuine Mitutoyo 3109AB-10 in Kuwait, contact General Tech Services LLC at +965 9807 4888 to request pricing and current availability.
