Mitutoyo 3424A-19 | Dial Gauge | Lug Back | ANSI/AGD Type | Series 3 | Jewelled Bearing | Graduation 0.001 inch | Range 2 inch
Part No. 3424A-19 | Range 2 inch | Graduation 0.001 inch
General Tech Services LLC — Genuine Mitutoyo Distributor, Kuwait +965 9807 4888
Product Overview

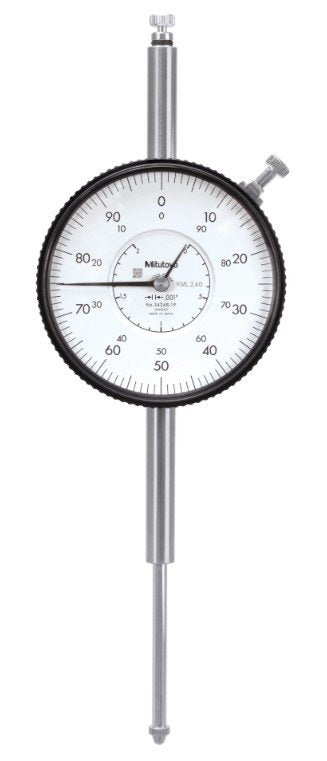

The Mitutoyo 3424A-19 is an ANSI/AGD-type Series 3 dial gauge with a lug back design, 0.001 inch graduation and a 2 inch measuring range. Its jewelled bearings support smooth, sensitive pointer movement for long-travel comparative measurement of heights, steps, runout and machine alignment.
The 2 inch measuring range provides extended travel for inspection tasks where a longer stroke is needed without repeatedly resetting the gauge. The lug back provides a dedicated rear mounting point for securing the gauge to suitable brackets, fixtures or machines where lug mounting is preferred.
For applications requiring a longer 3 inch range, the Mitutoyo 3426A-19 provides the same 0.001 inch graduation with 3 inch travel.
Key Benefits
■ 0.001 inch graduation for clear, practical readings
■ 2 inch measuring range for long-travel inspection
■ ANSI/AGD standard design for compatibility with common stands, holders and accessories
■ Lug back for direct mounting to suitable brackets and fixtures
■ Jewelled bearings for smooth, low-friction movement
■ Genuine Mitutoyo part supplied and supported locally in Kuwait
Who This Product Is Best For
■ Inspectors measuring heights, steps and runout over an extended stroke
■ Toolrooms and machine shops setting up workpieces, fixtures and machine alignment
■ Maintenance teams replacing an existing ANSI/AGD lug back dial gauge
■ Calibration and inspection teams standardising equipment on Mitutoyo
How to Use It
-
Mount the gauge using its lug back or compatible stem arrangement on a rigid bracket or fixture, with the plunger correctly aligned with the measuring surface.
-
Apply suitable preload and rotate the bezel to set zero against a reference surface or master.
-
Move the workpiece or gauge across the feature and read the pointer movement to determine the deviation.
-
Retract the plunger carefully after measurement and store the gauge clean, dry and protected.
Frequently Asked Questions
What is the Mitutoyo 3424A-19 dial gauge used for?
The 3424A-19 is designed for long-travel comparative measurement of heights, steps, runout and machine alignment. Its 0.001 inch graduation and 2 inch range support extended-travel inspection.
What are the graduation and range of the 3424A-19?
The gauge has a 0.001 inch graduation and a 2 inch measuring range.
What does ANSI/AGD mean on the 3424A-19?
ANSI/AGD refers to the American Gage Design standard for dial indicators. Standardized dimensions help support compatibility with commonly used stands, holders and inspection accessories.
What is the benefit of a lug back?
The lug back provides a dedicated mounting point that can be used to secure the gauge to a suitable bracket or fixture.
What is the difference between the 3424A-19 and 3426A-19?
Both models have a 0.001 inch graduation and a lug back design. The 3424A-19 has a 2 inch measuring range, while the 3426A-19 has a 3 inch range.
Is the genuine Mitutoyo 3424A-19 available in Kuwait?
Contact General Tech Services LLC at +965 9807 4888 for current pricing, lead time and availability.
Request Pricing & Availability
For genuine Mitutoyo 3424A-19 dial gauges in Kuwait, contact General Tech Services LLC at +965 9807 4888 for pricing and current stock availability.
