Mitutoyo 513-284GT Parallel Style Lever Indicator 0.8mm Full Set

Name: Mitutoyo 513-284GT Parallel Style Lever Indicator 0.8mm Full Set
Brand: Mitutoyo
SKU: 513-284GT
Availability: OutOfStock

Part Number : 513-284GT

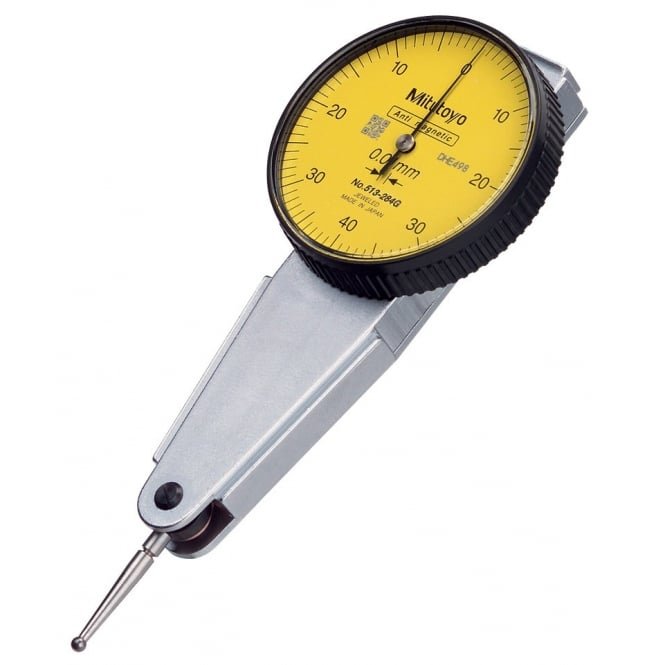

A Mitutoyo versatile lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.

Availability: Sold out

Specifications

Accuracy	+/-8
Brand	Mitutoyo
Data Output	No
Dial Reading	0-40-0
Display Type	Non-digital
Graduations	0.01mm
Measuring Force	0.3N or less
Measuring Units	Millimetre
Range	0.8mm
SKU	513-284GT
Type	Lever
