Part Number : 513-425-10E

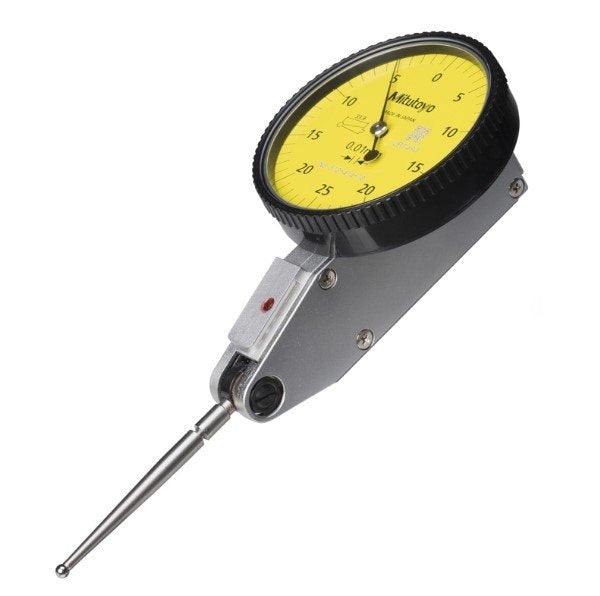

The Mitutoyo 513-425-10E Dial Test Indicator (Series 513) is designed for the precise measurement of small variations in workpieces. It offers a graduation of 0.002mm and an accuracy of ±0.007mm, ensuring high reliability. With a range of 0.6mm, it is perfect for measuring slight discrepancies in precise applications. The clear dial display provides easy-to-read results for quick interpretation. Built with durable materials, this indicator offers long-lasting performance in industrial environments. It is ideal for use in quality control, inspection, and precision engineering tasks.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Analog/Digital	Analog
Contact point	Thread M 1.7 x 0.35
Dial Reading	0-100-0
Graduation	0.002 mm
Hysteresis	4 µm
Inch-Metric	Metric
Measurement range	7 µm
Measuring Force	0.01 - 0.4 N
Range	0.6 mm
Repeatability	1 µm
Series	513
Stylus	Tip No : 103011
Type	Dial Test Indicator
Weight	45 g

Graduation: 0.002mm for highly precise measurements.
Accuracy: ±0.007mm for reliable and consistent results.
Range: 0.6mm, ideal for detecting small variations in workpieces.
Series 513: Known for its precision and durability in industrial testing.
Clear Dial Display: Easy-to-read scale for quick and accurate measurements.
Durable Construction: Designed for long-lasting performance in demanding environments.

DOWNLOAD CATALOG
